The ABS/ASR test system is mainly composed of a PCM-6851A data collector, wheel speed sensor, pedal force sensor, pressure sensor, flexible pedal switch, etc., based on a notebook computer intelligent special test platform, which can complete compliance with the national standard GB/T13594- The ABS performance test required by 2003, the supporting software is intelligent and flexible, and the test results are output in a variety of ways, such as tables, curves, and raw data, so that users can quickly form test reports.
Pilot projects
●Automobile ABS performance test
Measurement parameters
●Vehicle speed, time, braking distance, MFDD, pedal force, brake line pressure, instantaneous wheel speed, slip rate, slip rate, wheel lock time, etc.
Main feature
●Automatic classification management of test data of ABS/ASR test system
●ABS/ASR test system supports rapid test report generation

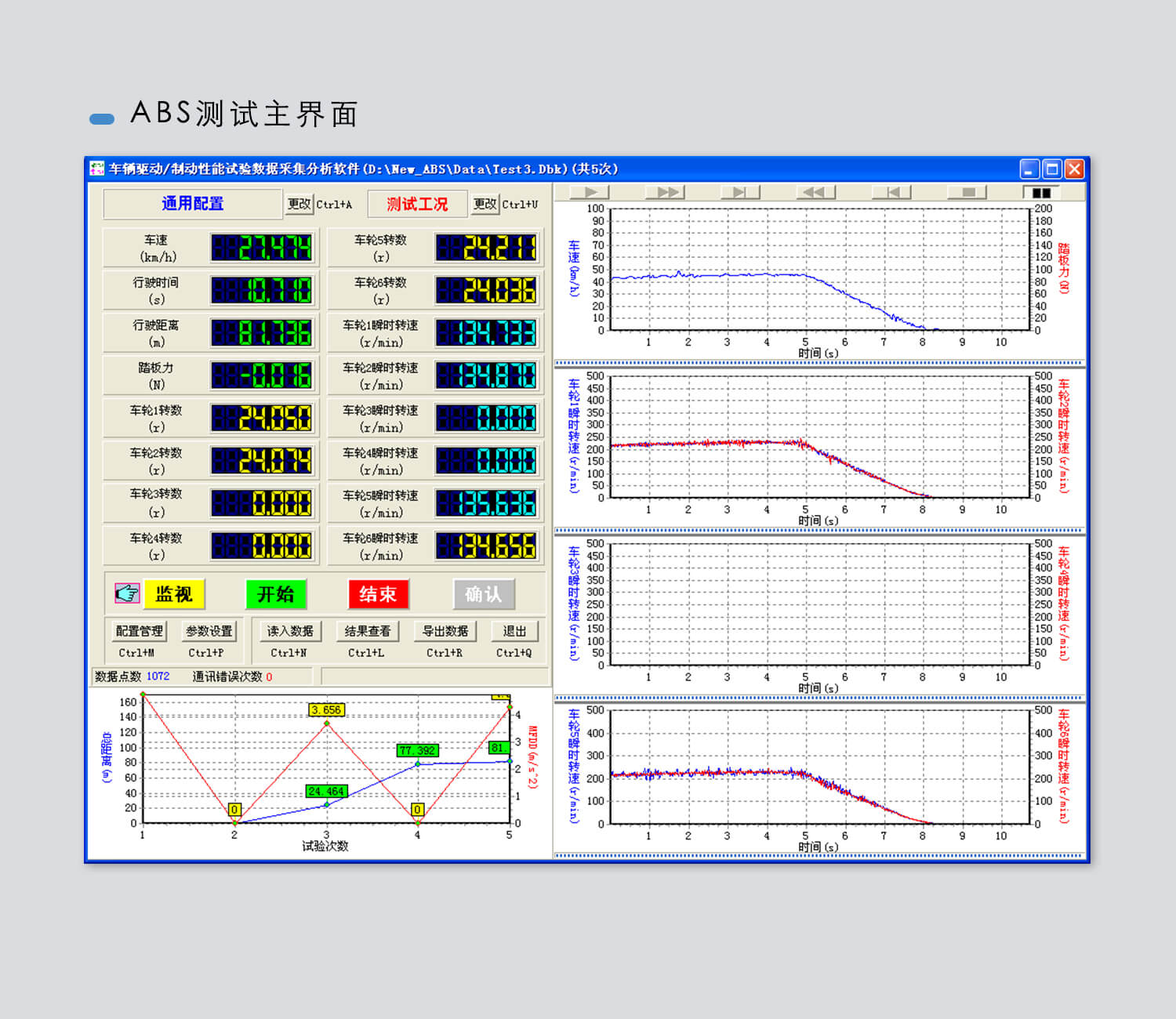

●The display parameters and curves of the ABS/ASR test system can be flexibly configured
●Meet the new national and international test standards
●Using high-precision hardware speed measurement method, the minimum speed measurement cycle is 1ms
●Data collector + notebook computer + driver multi-parameter display common mode
●The data collector uses a microcontroller + FPGA architecture, hardware trigger logic, and reduces latency
●Full consideration of vehicle vibration operating conditions, one-button operation, support for voice prompts
Speed | Range: 0-720km/h; accuracy: ±0.1 km/h; resolution: 0.01 km/h |
Time | Range: unlimited; accuracy: ±1ms; resolution: 1ms |
Distance | Range: unlimited; accuracy: ±2cm; resolution: 4mm |
Data update rate | 1~100Hz |
GPS original update frequency | 20Hz, 100Hz optional |
Wheel speed sensor | 1000P pulse per revolution, dynamic sealing, including mounting bracket |
Pressure Sensor | Range: 20MPa (or 1.6MPa); accuracy: ±0.25%FS; installation thread M10x1 |
Pedal force sensor | Range: 1200N; Accuracy: ±0.3%FS |

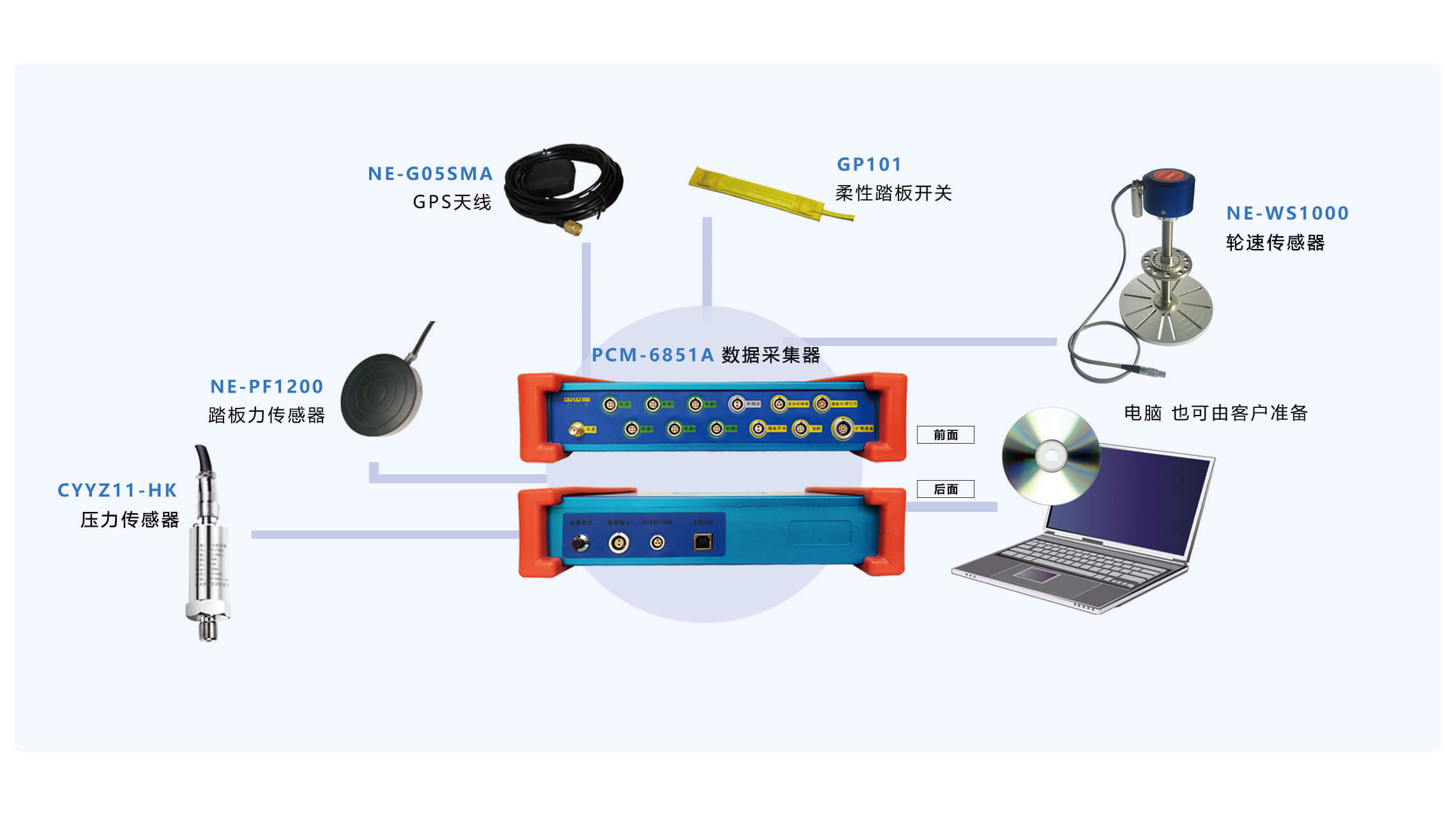

●PCM-6851A data collector

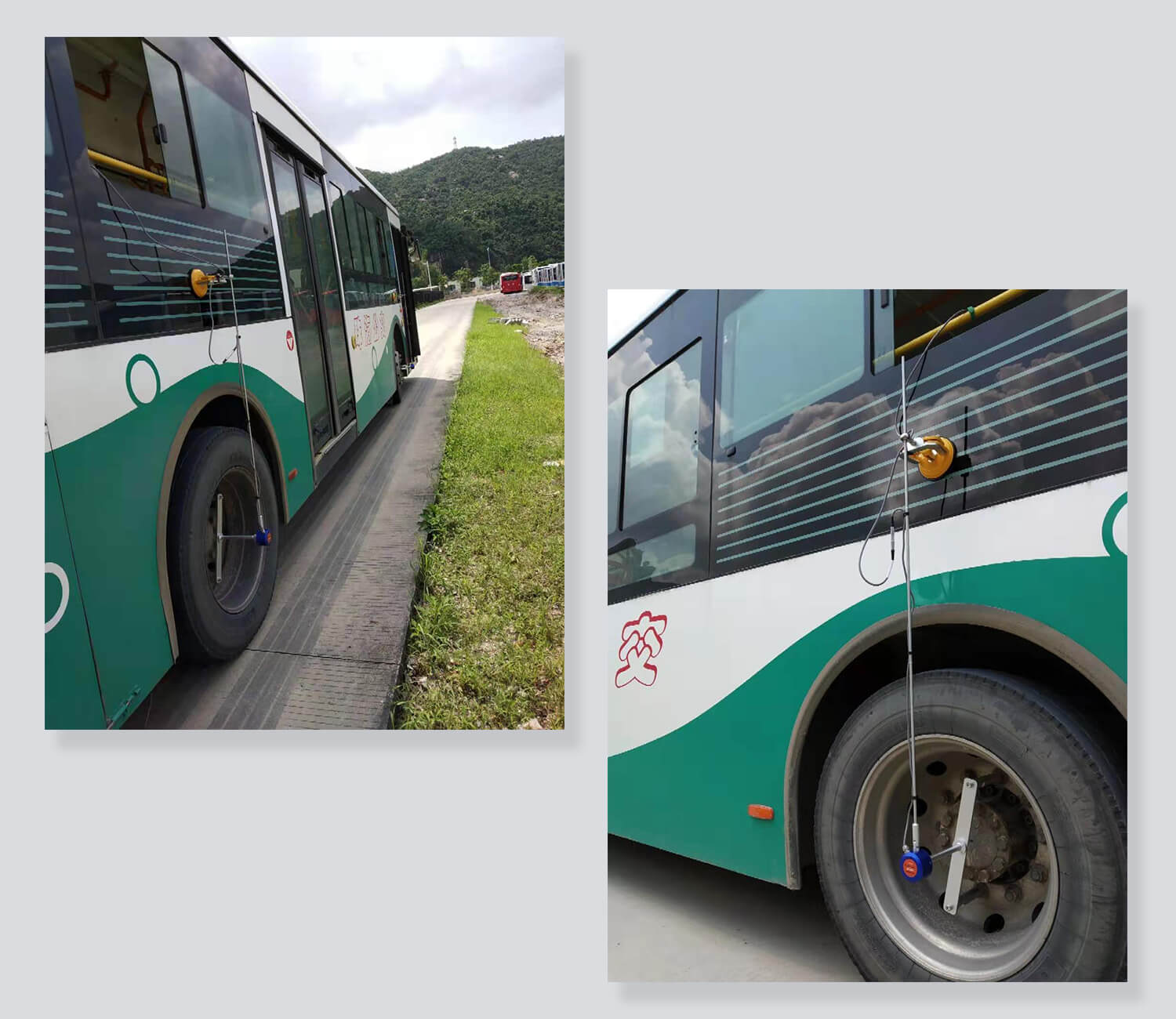

●Wheel Speed Sensor
●Pedal force sensor
●Brake pressure sensor
●Flexible pedal switch
●Notebook
●Driver multi-parameter display
●Test lithium battery: H32 (optional)
●Accessories: signal line, power line, GPS antenna
●Instrument storage box: NE-BOX-ABS
●6 wheel revolution channels with direction recognition function and anti-shake function
●Able to complete 6 rounds of average speed, slip (slip) rate measurement
●It can complete 6-round instantaneous speed and slip (slip) rate instantaneous measurement
●Using a unique equal-precision hardware speed measurement circuit to solve the contradiction between the speed and accuracy of the pulse signal frequency measurement

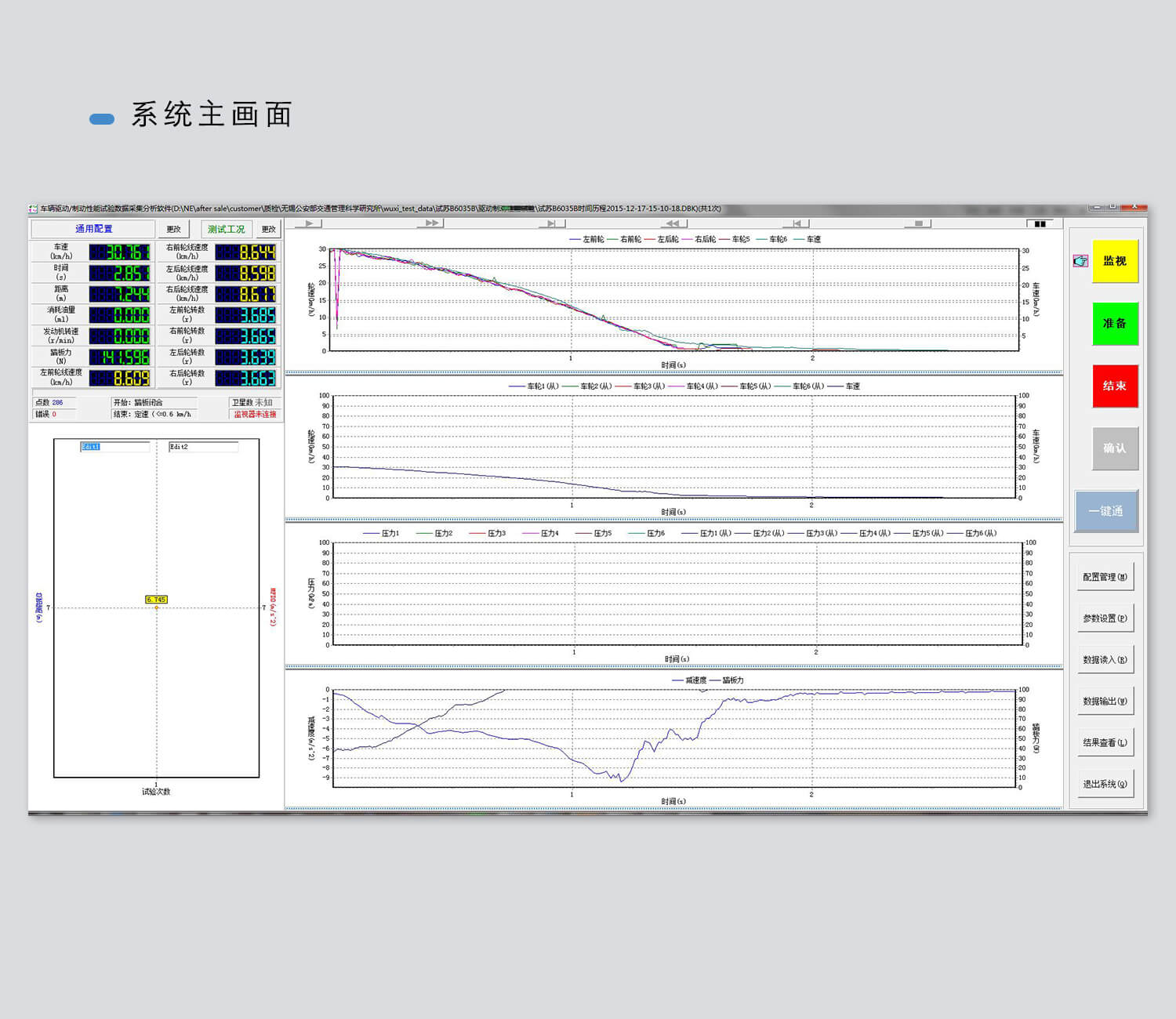

●More than 59 measurement parameters and 58 real-time curves can be displayed (16 parameters and 8 real-time curves can be displayed at the same time)
●More than 49 test average curves or special parameters can be displayed (two parameter curves can be displayed at the same time)
●Multiple test trigger synchronization modes, which can complete tests such as ABS, ASR performance test, normal braking performance, power performance, etc.
●Test parameter configuration customization management function, which can save commonly used test configurations for different test items, which is convenient for direct recall in the future
●Convenient and simple test process control, with one-key completion function, suitable for vehicle dynamic environment operation
●All test data and curves can be output to clipboard, text file or printer
