PCM-6851R data collector

PCM-6851R data collector
  • Description
  • Technical index
  • Interface

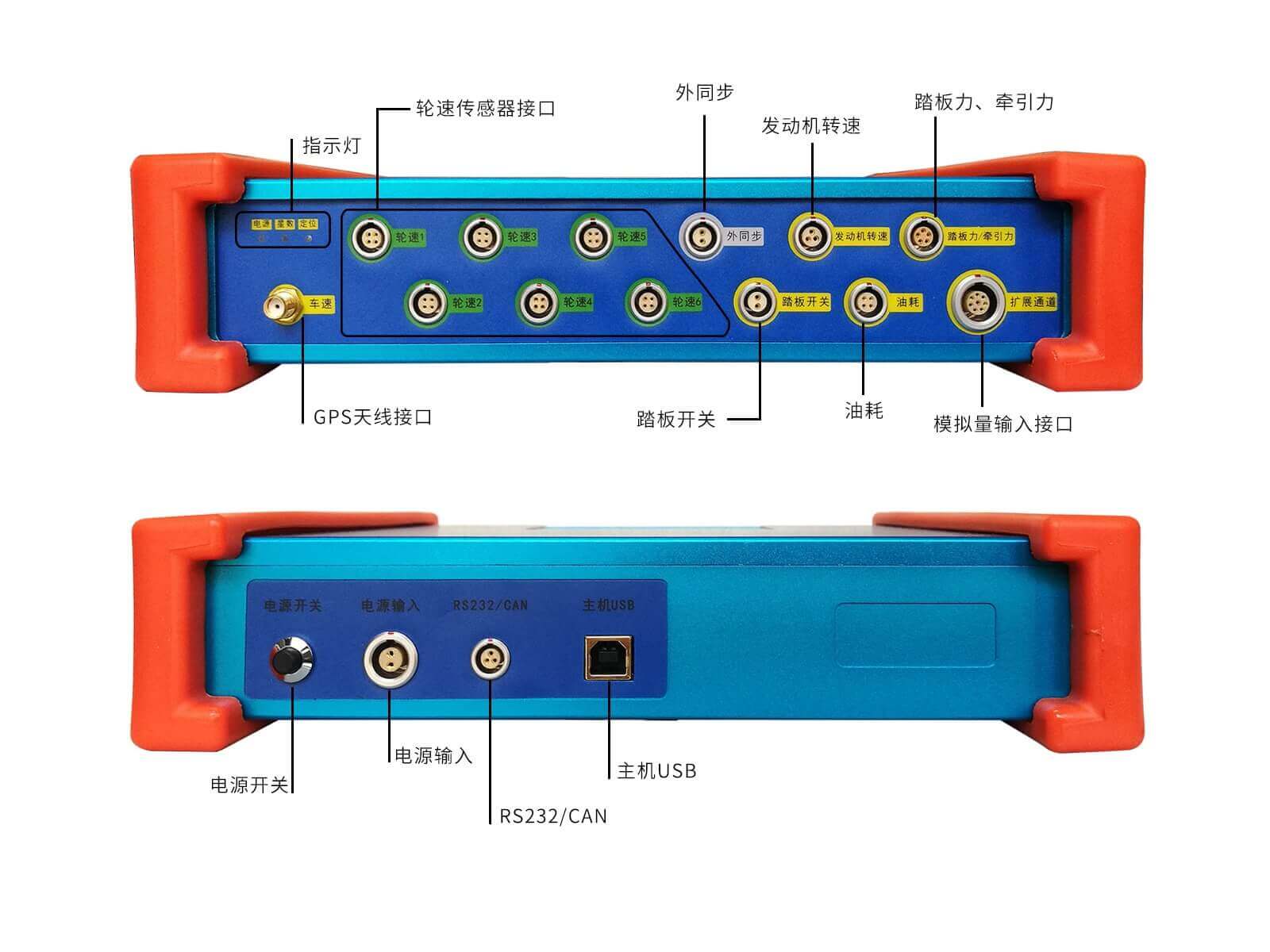

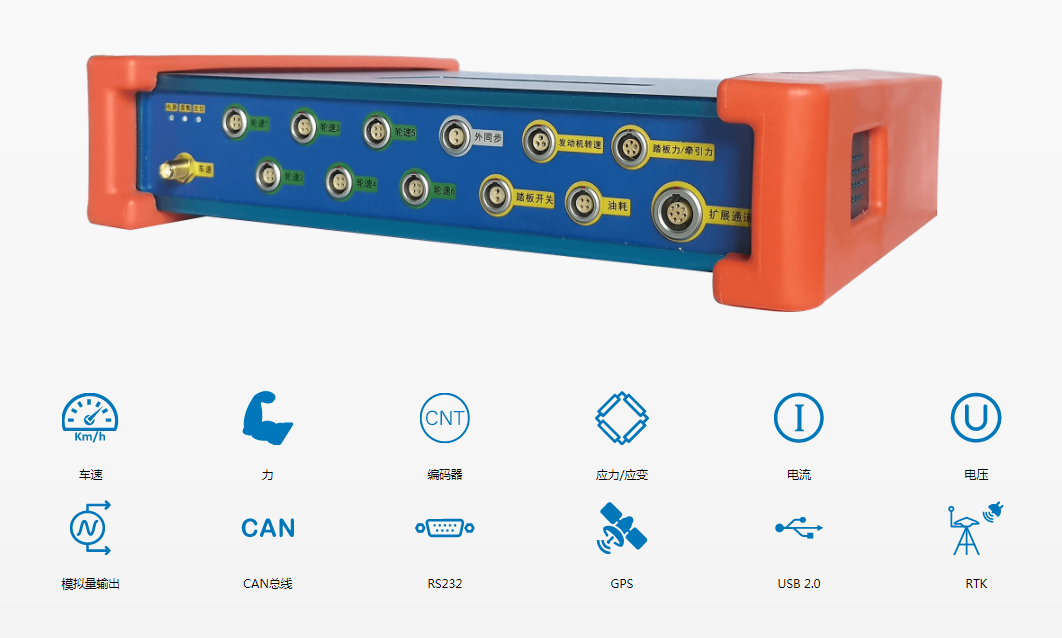

PCM-6851R data collector is a high-precision vehicle comprehensive performance test equipment with differential GPS measurement function. It adopts new technology and has a built-in GPS speed measurement module. It covers all the functions of a car tester. It communicates with a notebook computer through a USB port. It can complete automobile power performance test, braking performance test, traction performance test, fuel consumption test, taxi test, speedometer calibration, steep slope test, ABS test and other automotive road tests that meet national standards. It adopts vehicle-mounted thick aluminum alloy chassis and The German original connection socket has high reliability.

●Main Features

Differential GPS measurement system, which can test the vehicle brake offset

Using microcontroller + FPGA architecture, hardware trigger logic, reduce latency

Using high-precision hardware speed measurement method, the minimum speed measurement cycle is 1ms

The access signal of the fuel consumption test interface is a quadrature TTL double pulse signal, which has the function of anti-reverse jitter

The data collector has built-in AD converter, multi-channel forward and reverse counters and high-performance microprocessor. The synchronous measurement logic is constructed by a large-scale gate array, and the test accuracy is high.

●Measurement parameters

Vehicle speed, time, distance, brake offset, fuel consumption, MFDD, pedal force, pedal displacement, brake line pressure, traction force, engine speed, wheel speed, instantaneous speed, instantaneous slip (slip) rate, average speed , Average slip (slip) rate, etc.

PCM-6851R data collector technical indicators

Speed Range: 0-720km/h; accuracy: ±0.05 km/h; resolution: 0.01 km/h
Time Range: 1100h; Accuracy: ±1ms; Resolution: 1ms
Distance Range: 15000km; Accuracy: ±2cm; Resolution: 4mm
Data update rate 1~100Hz
GPS update frequency 10Hz, 20Hz, 100Hz optional
Analog input 8CH, 1 channel built-in amplifier circuit and excitation voltage, can be directly connected to strain signal
Other 7-channel input signal range ±5V
Frequency input 6CH, built-in sensor power supply, can be directly connected to wheel speed sensor
Speed channel 1CH, built-in high-precision measurement GPS/BD speed measurement module
Engine speed 1CH, built-in sensor power supply, can be connected to pulse output speed sensor
Fuel consumption channel 1CH, built-in sensor power supply, can be connected to a fuel consumption meter with double pulse output
Digital trigger 2CH, can be connected with brake trigger switch and external inspection synchronization signal
RS232 1CH, used for function expansion
USB interface 1CH, used to communicate with PC
power input 12VDC (7~30V wide voltage)
Power consumption About 12W
Dimensions LWH 251x200x55mm (including anti-collision protection)
Weight About 1920g
