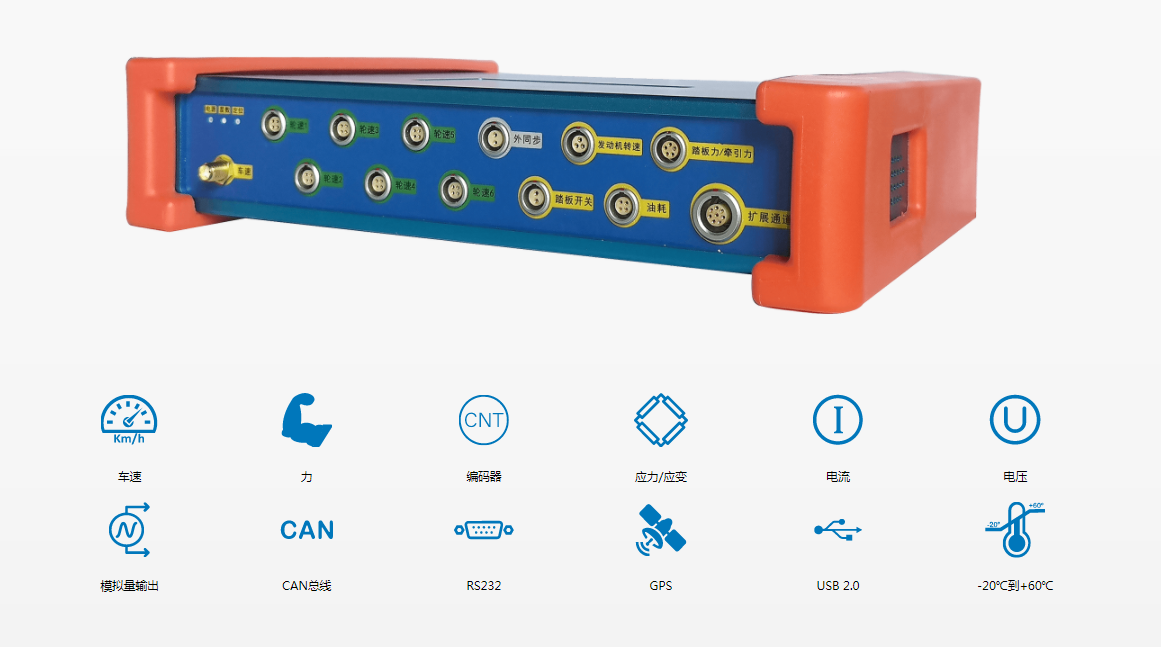

PCM-6851A data collector is a new generation of virtual instrument based on notebook microcomputer. It adopts technology and has built-in GPS speed measurement module. It covers all the functions of automobile tester. It can communicate with notebook microcomputer through USB port to complete automobile power performance testing and manufacturing. Dynamic performance test, traction performance test, fuel consumption test, coasting test, speedometer calibration, steep climbing test, ABS test and other automobile road tests that meet national standards, using vehicle-mounted thick aluminum alloy chassis and imported original connection sockets, which have a high Reliability.
●Main Features
Using microcontroller + FPGA architecture, hardware trigger logic, reducing the delay to a small
Using high-precision hardware speed measurement method, the minimum speed measurement cycle is 1ms
The access signal of the fuel consumption test interface is a quadrature TTL double pulse signal, which has the function of anti-reverse jitter
The data collector has built-in AD converter, multi-channel forward and reverse counters and high-performance microprocessor. The synchronous measurement logic is constructed by a large-scale gate array, and the test accuracy is high.
●Measurement parameters
Vehicle speed, time, distance, fuel consumption, MFDD, pedal force, pedal displacement, brake line pressure, traction force, engine speed, wheel speed, instantaneous speed, instantaneous slip (slip) rate, average speed, average slip (slip) Shift) rate and so on.
Speed |
Range: 0-720km/h; accuracy: ±0.1 km/h; resolution: 0.01 km/h |
Time | Range: 1100h; Accuracy: ±1ms; Resolution: 1ms |
Distance | Range: 15000km; Accuracy: ±2cm; Resolution: 4mm |
Data update rate | 1~100Hz |
GPS update frequency | 10Hz, 20Hz, 100Hz optional |

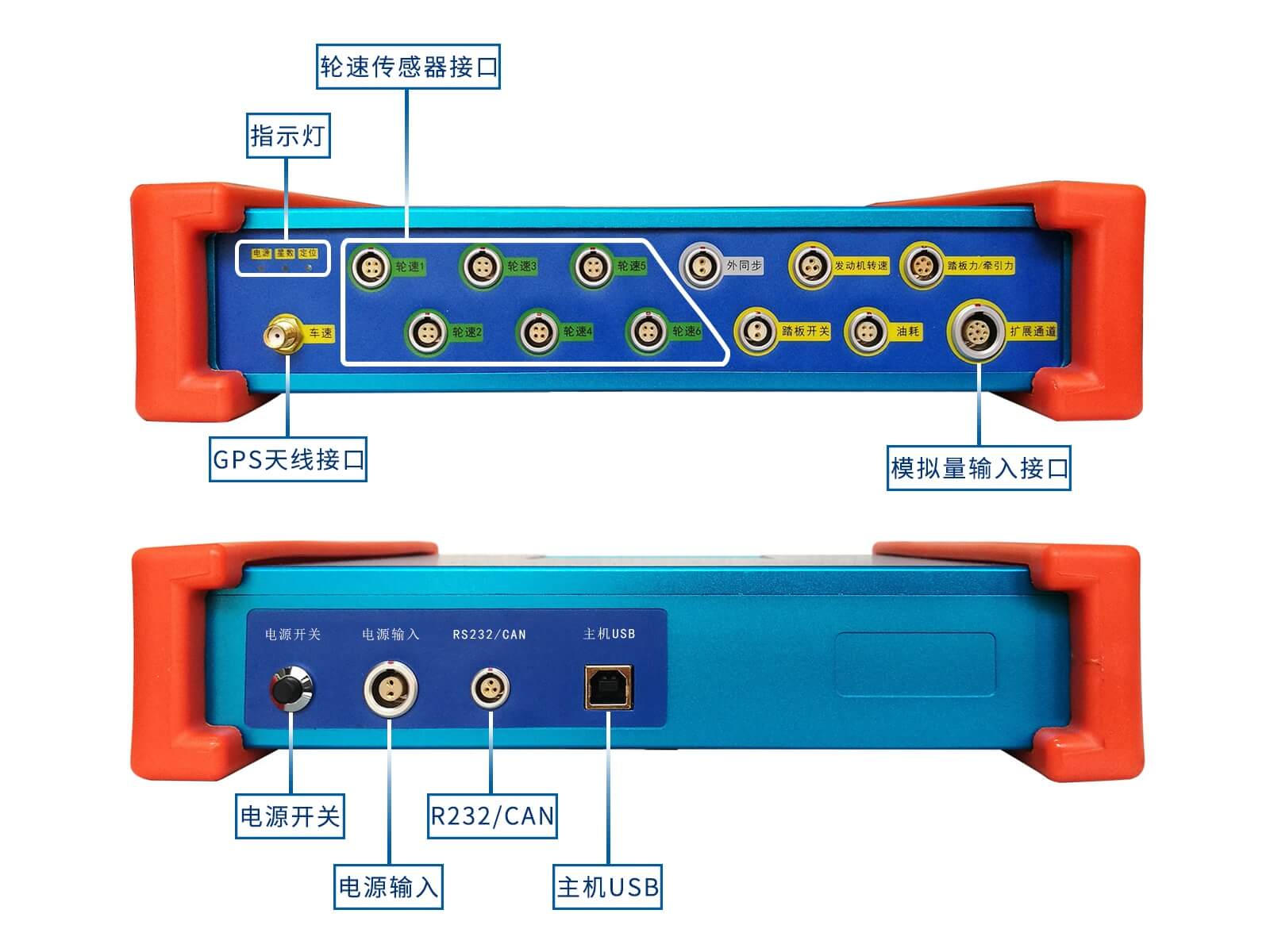

Analog input |
8CH, 1 channel built-in amplifier circuit and excitation voltage, can be directly connected to strain signal Other 7-channel input signal range ±5V |
Frequency input | 6CH, built-in sensor power supply, can be directly connected to wheel speed sensor |
Speed channel | 1CH, built-in high-precision measurement GPS/BD speed measurement module |
Engine speed | 1CH, built-in sensor power supply, can be connected to pulse output speed sensor |
Fuel consumption channel | 1CH, built-in sensor power supply, can be connected to a fuel consumption meter with double pulse output |
Digital trigger | 2CH, can be connected with brake trigger switch and external inspection synchronization signal |
RS232/CAN | 1CH, used for function expansion |
USB interface | 1CH, used to communicate with PC |
power input | 12VDC (7~30V wide voltage) |
Power consumption | About 12W |
Dimensions LWH | 251x200x55mm (including anti-collision protection) |
Weight | About 1920g |
