Working condition fuel consumption/gas consumption/power consumption test system

Description
Technical index
Configuration
Software
Application

Working condition fuel consumption/gas consumption/power consumption test system is composed of test record host, driver's multi-parameter display, hand operator, etc. It is mainly used for four-stage fuel consumption of vehicles at constant speed, acceleration 50-70, acceleration 60-80, and idling 300 /Gas consumption measurement, which meets the new standards of the Ministry of Communications, is easy to operate and efficient in testing. It is especially suitable for measurement occasions in the proving ground.

●Test items

Constant speed/acceleration/idling fuel consumption test: JTT711-2016, JTT719-2016

Constant velocity/acceleration/idling gas consumption test: JTTXXXX-2019 (Draft for comments)

●Measurement parameters

Vehicle speed, time, distance, fuel consumption/gas consumption

●Main Features

Working conditions fuel consumption/gas consumption/power consumption test system is easy to operate, one-key operation of the handheld operator

The start and end of the test are automatically triggered, with a voice prompt function

Working condition fuel consumption/gas consumption/power consumption test system built-in printer, with test data online/offline printing function

The condition trigger vehicle speed is automatically corrected to the standard trigger vehicle speed

The conditional trigger distance is automatically corrected to the standard distance

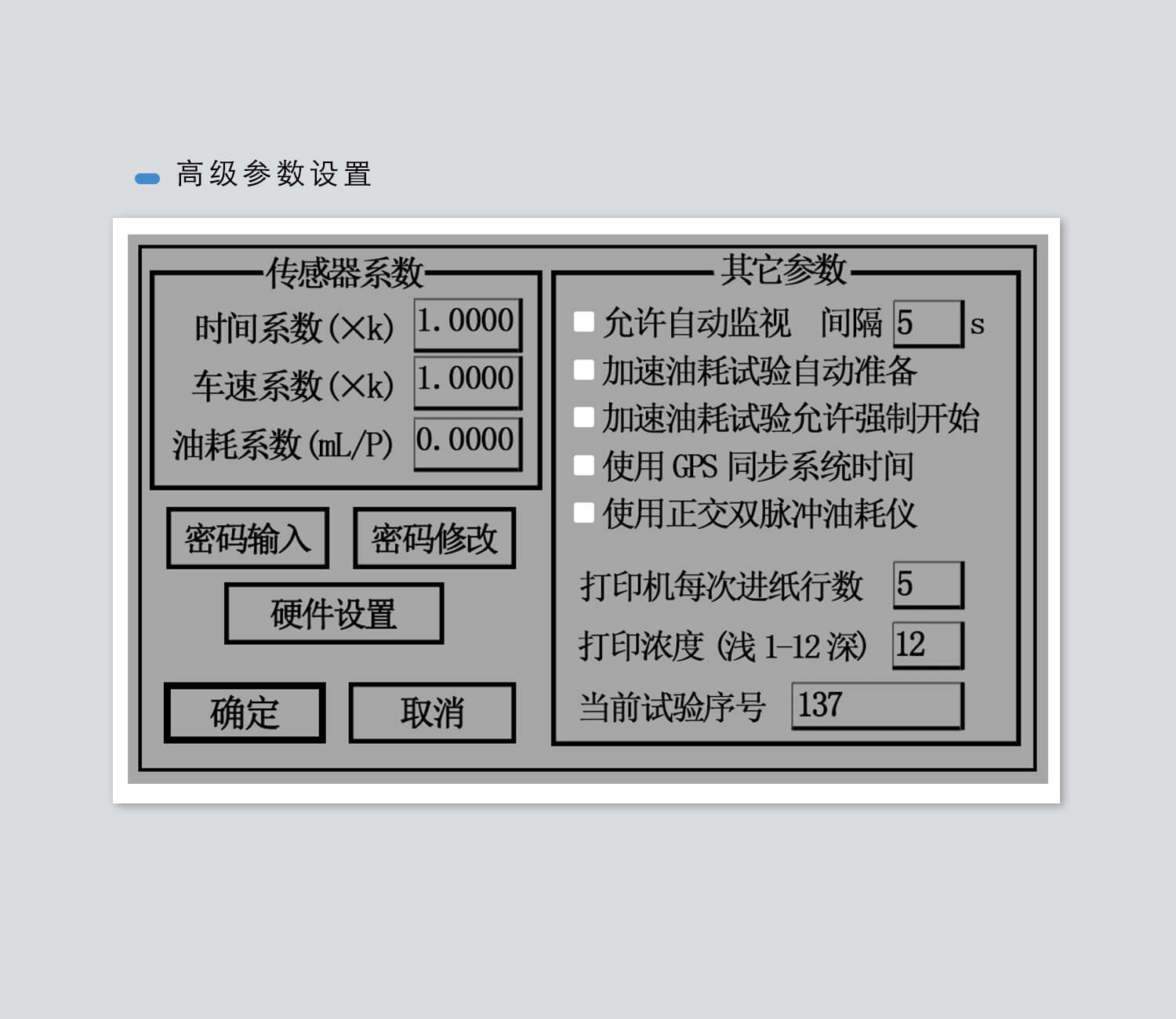

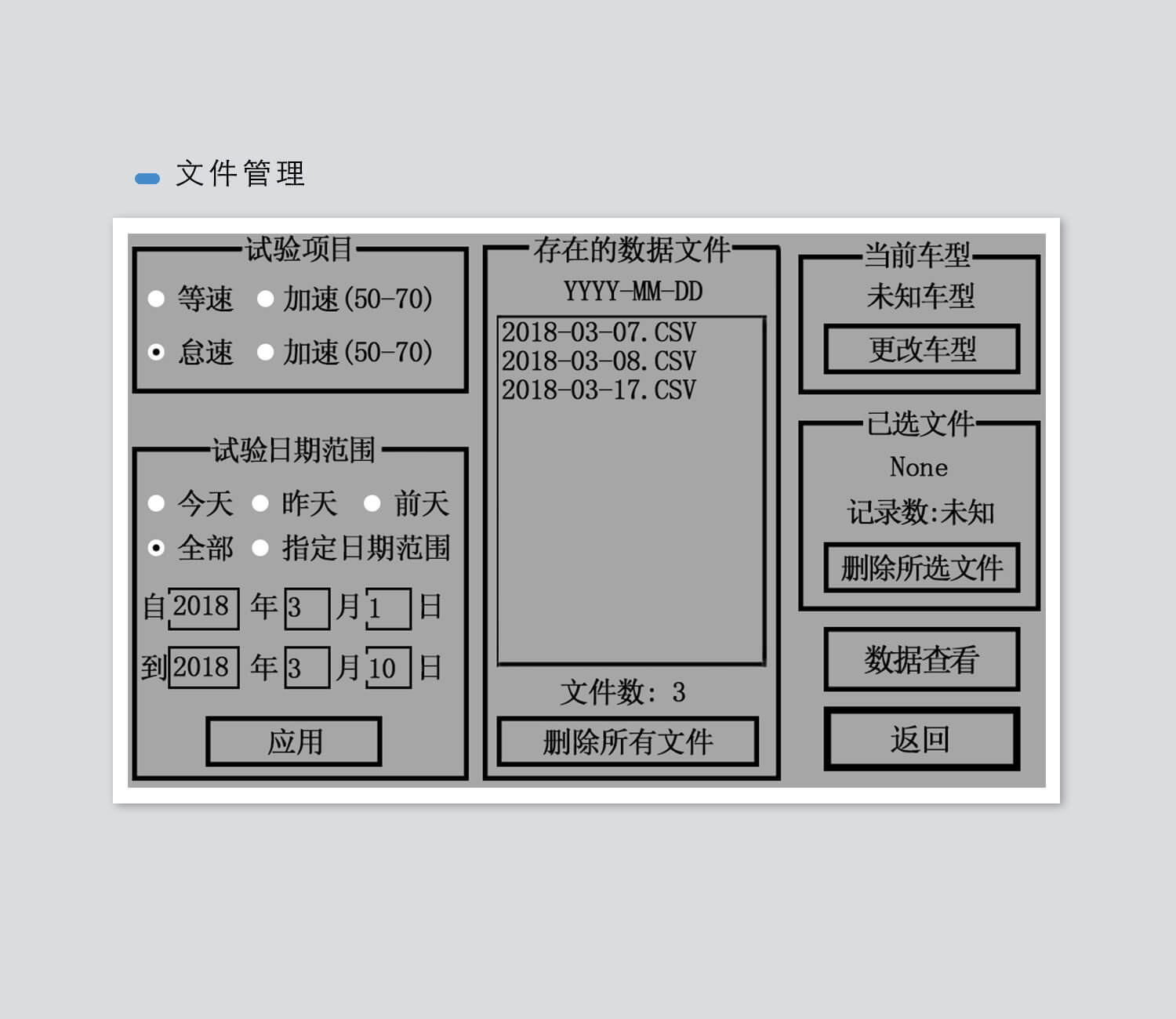

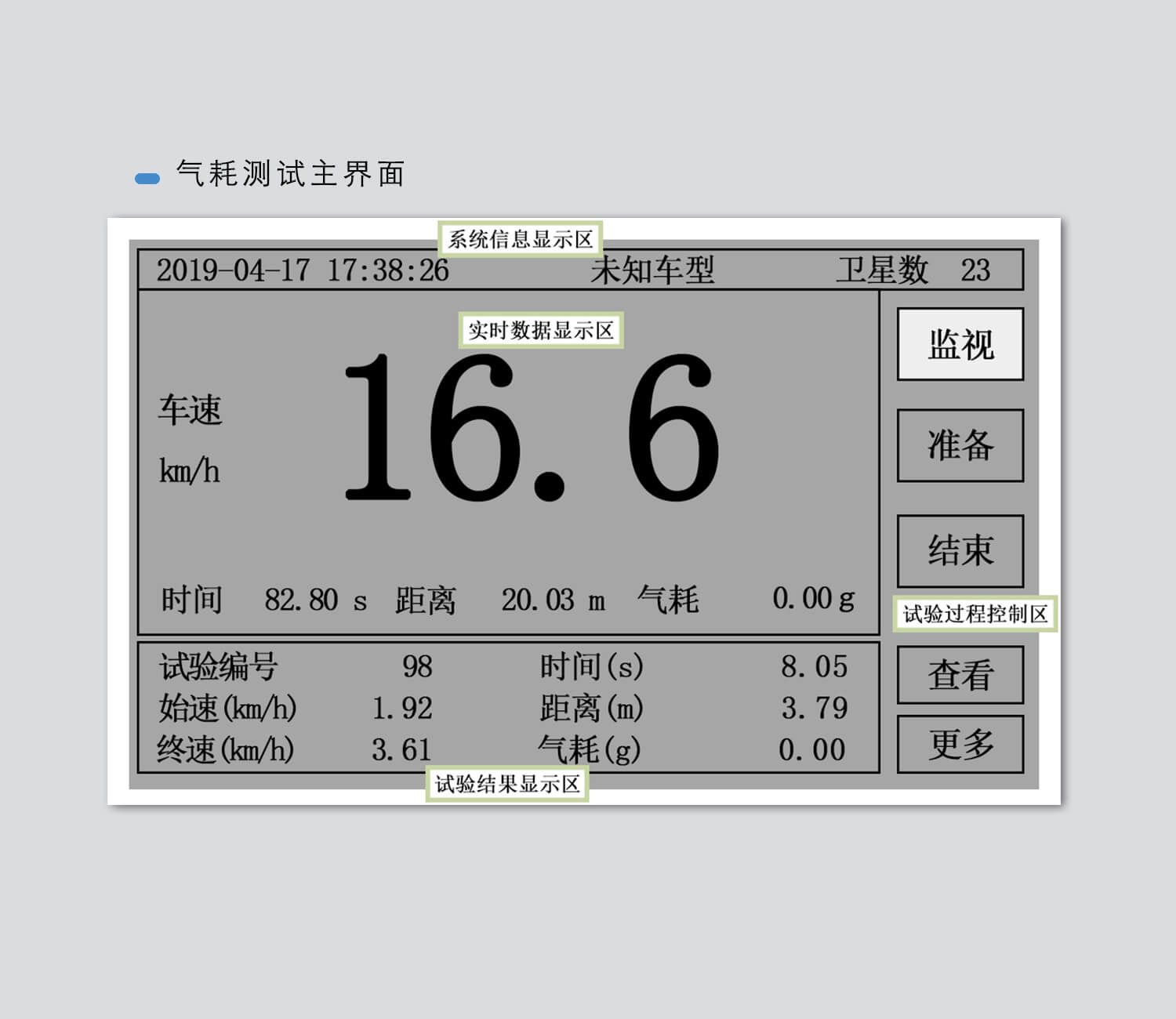

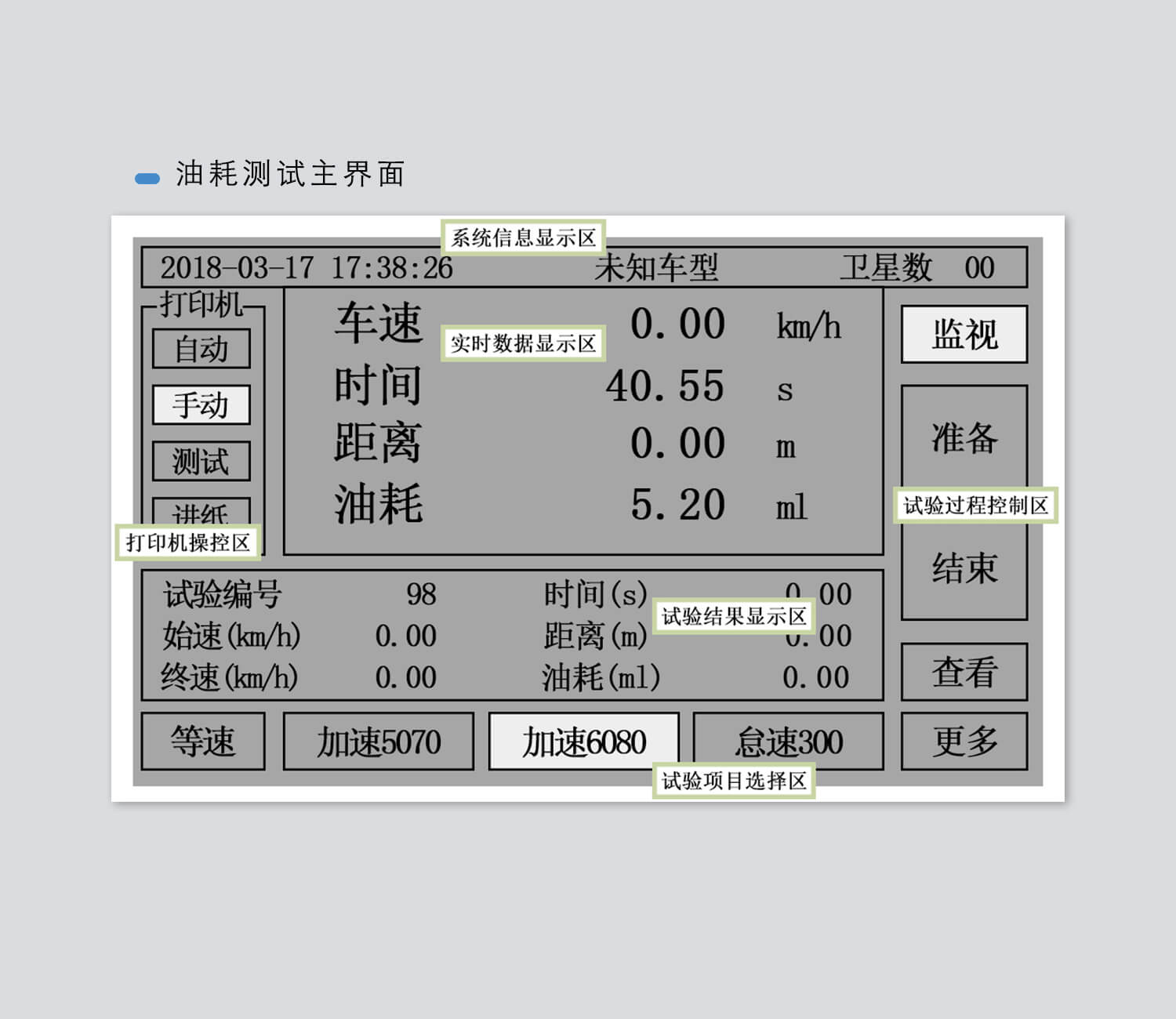

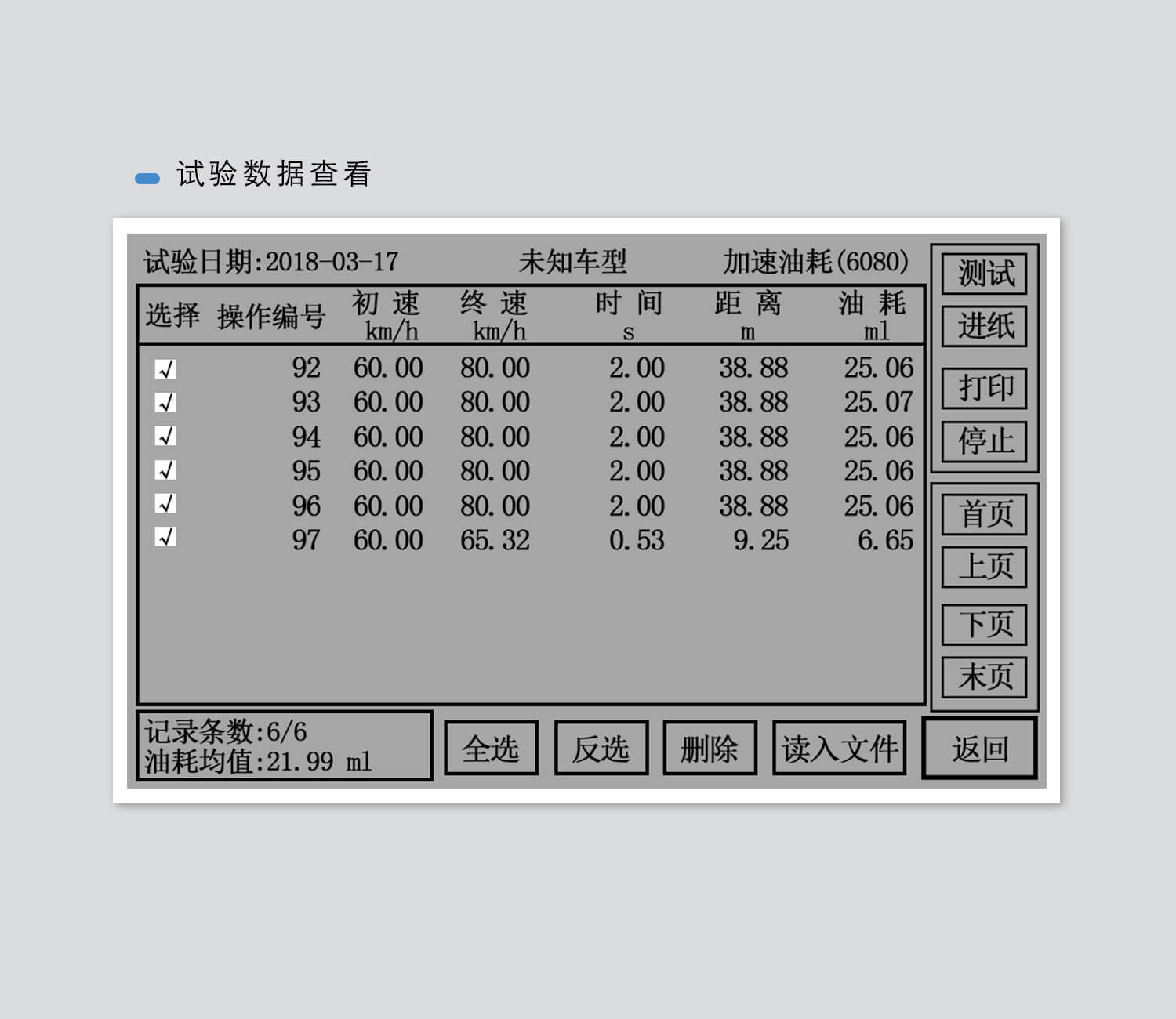

There are three modes: touch screen operation, physical button operation, and remote operation by hand operator

Speed	20Hz GPS, speed measurement range 0-720km/h, speed measurement accuracy: ±0.1km/h, resolution 0.01 km/h
Time	Range: unlimited, accuracy: 1ms
Distance	Range: unlimited; accuracy: ±2cm; resolution: 4mm
Fuel consumption	Range: 0.3～250L/h; accuracy: ±0.5%
Gas consumption	Range: 0～350kg/h; accuracy: ±0.35%
Power supply	24VDC (7～36V wide voltage), power consumption about 20W, with power supply reverse protection
Recording cycle	10ms-50s can be set
Maximum length of single data file	2GB
Storage medium	High-speed U disk, capacity 8-32GB
Driver multi-parameter display	High contrast 5-inch LCD screen
Host highlight color touch screen	5.0 inches, resolution 800x480, frequency 1G
Show	With numerical display function of vehicle speed, distance, time and fuel consumption

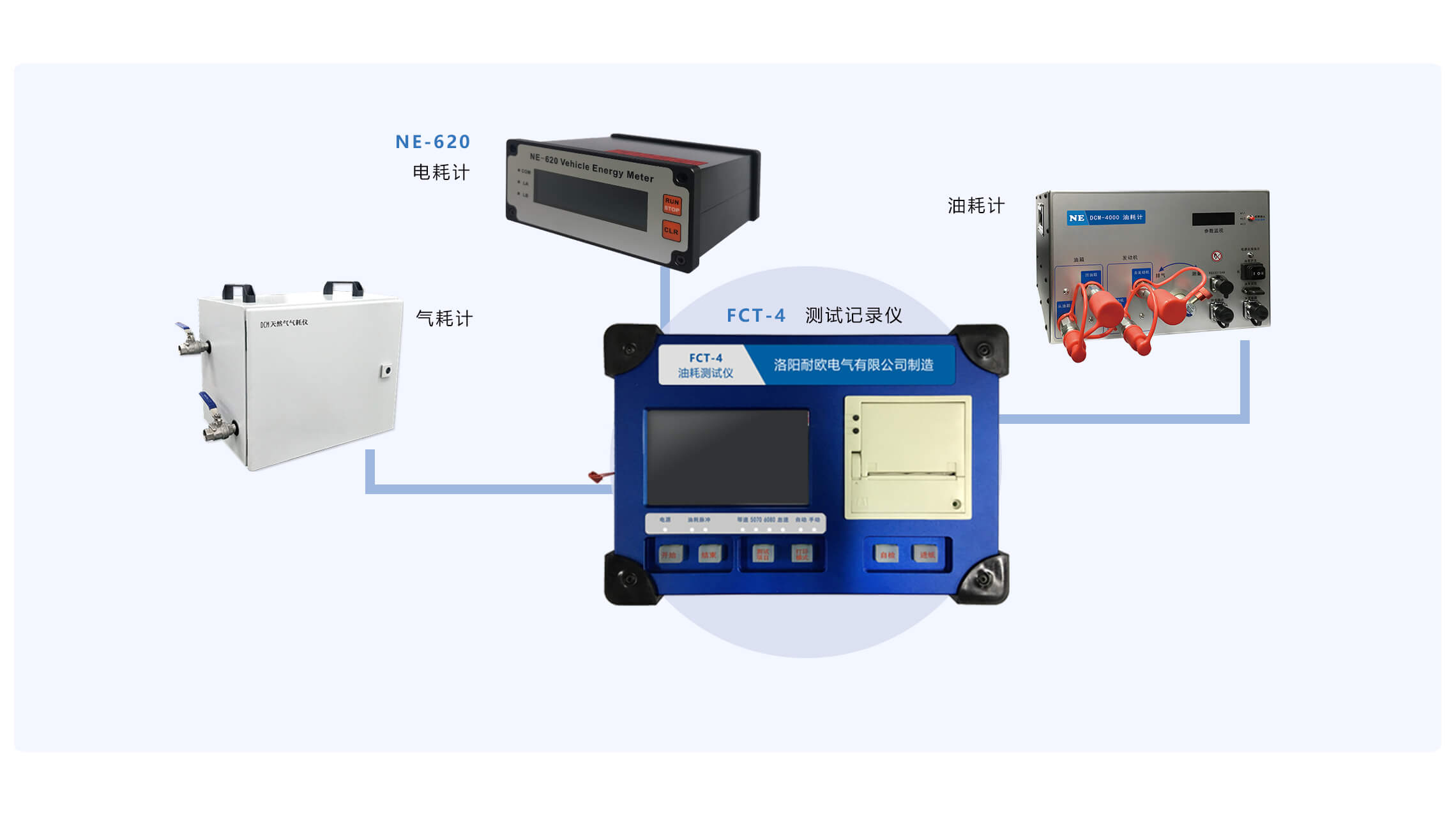

Fuel consumption/gas consumption/power consumption test system configuration under working conditions

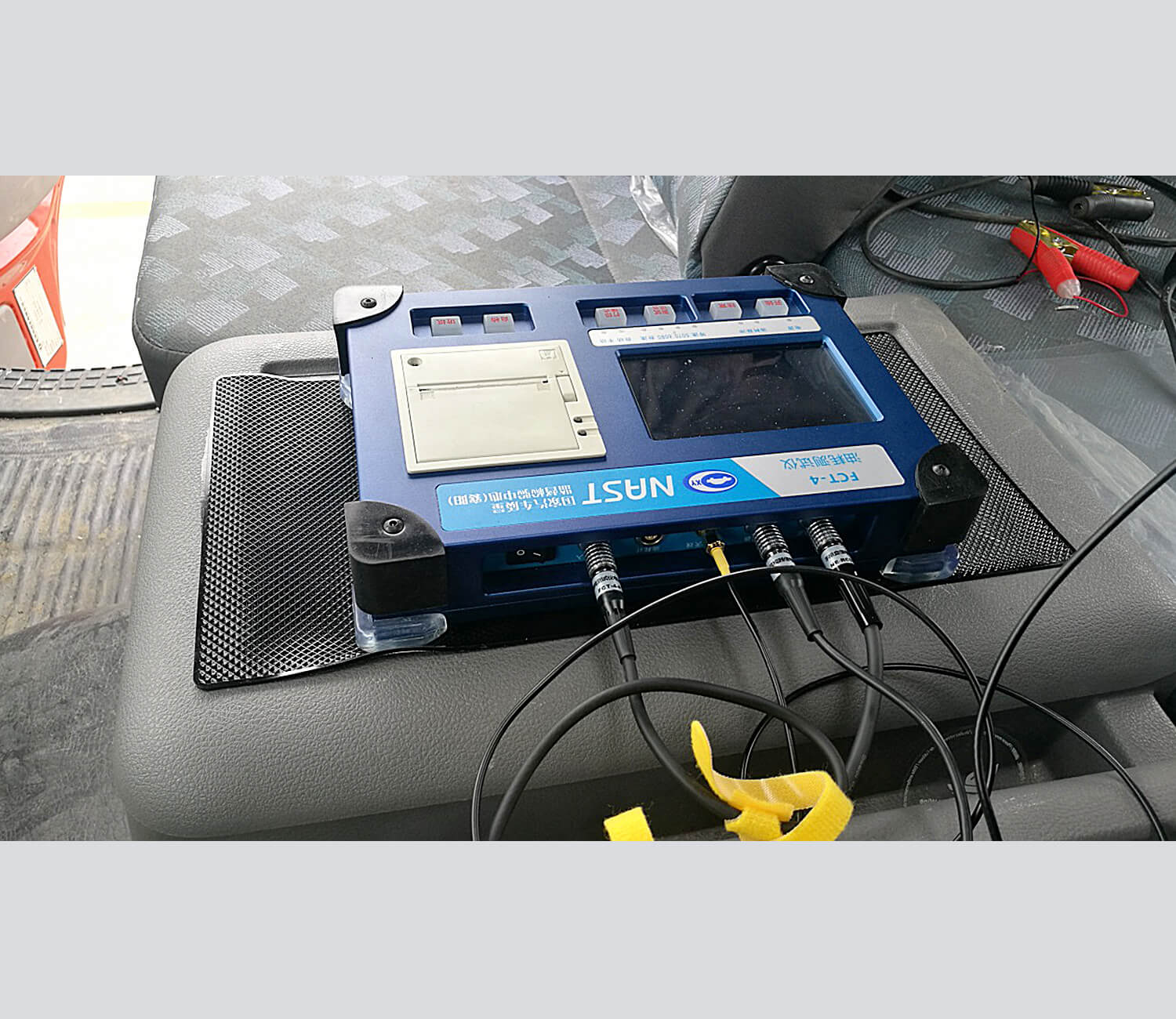

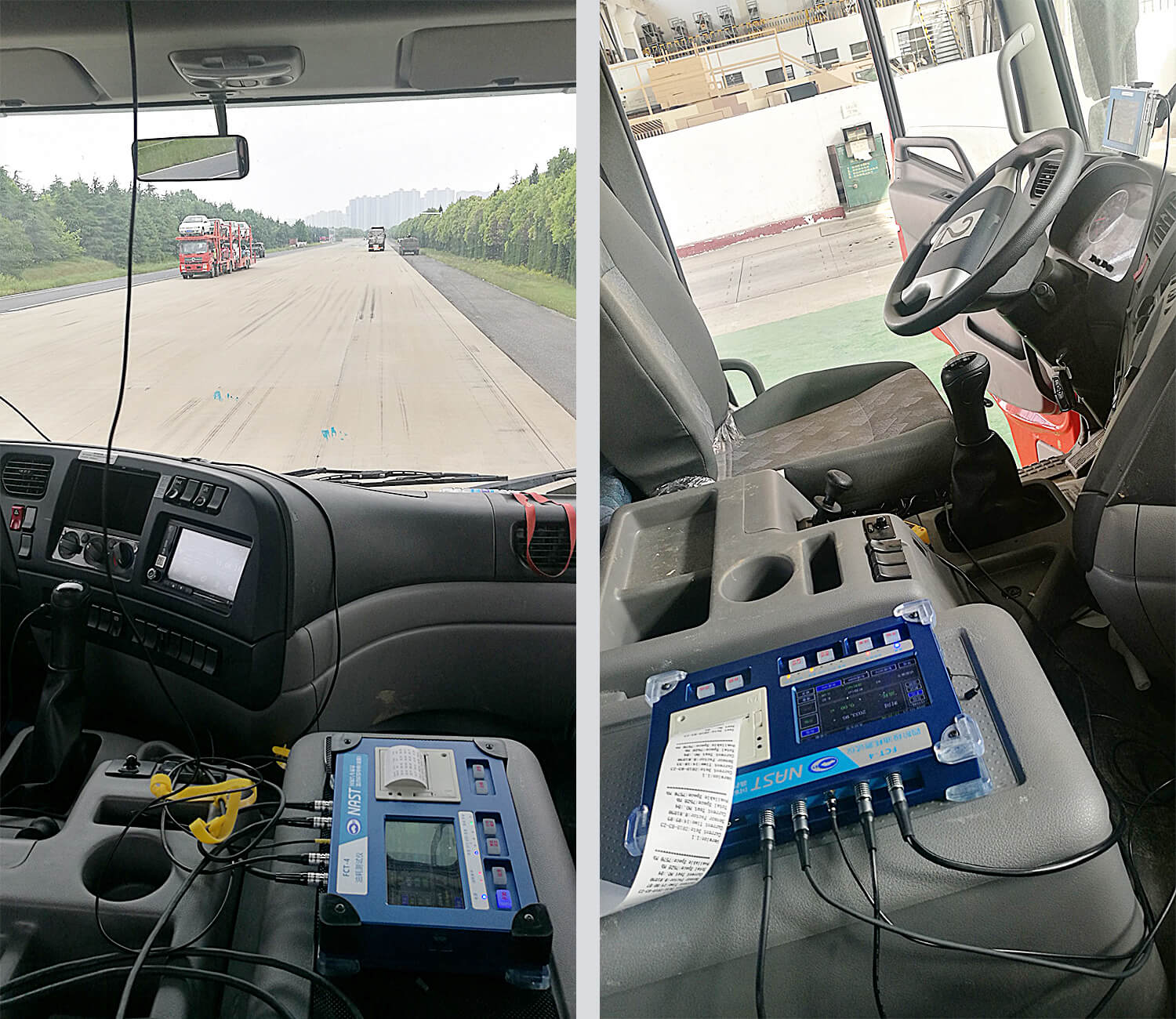

●Test recorder: FCT-4 (GCT-4), 1

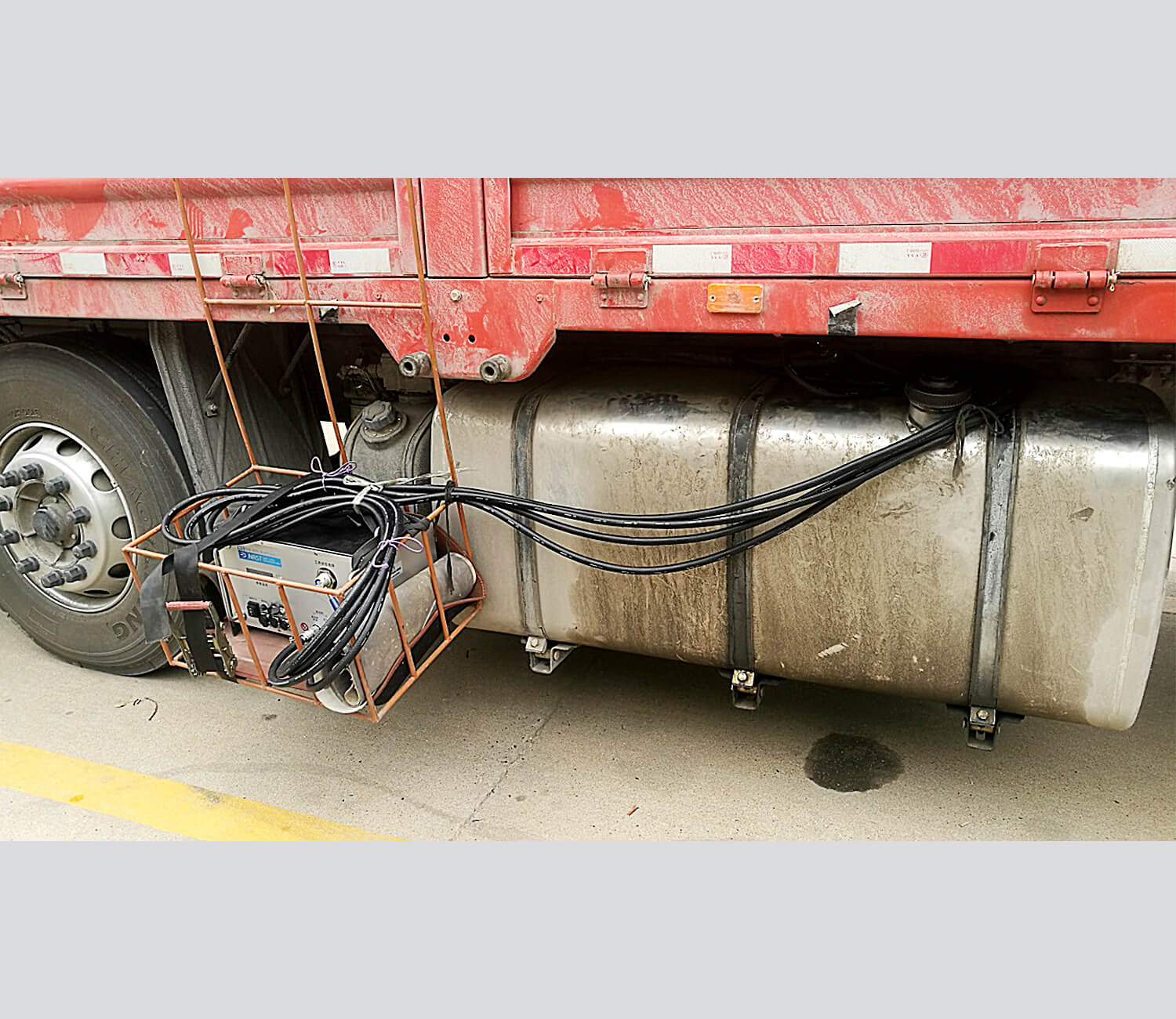

●Fuel consumption meter/gas consumption meter: DCM-4000 (DCM-8110), 1

●Driver multi-parameter display: DM-3, 1

●Accessories: oil pipes, power cords, signal wires, installation tools, manuals, etc.
