Radio wireless module

Description
Technical index

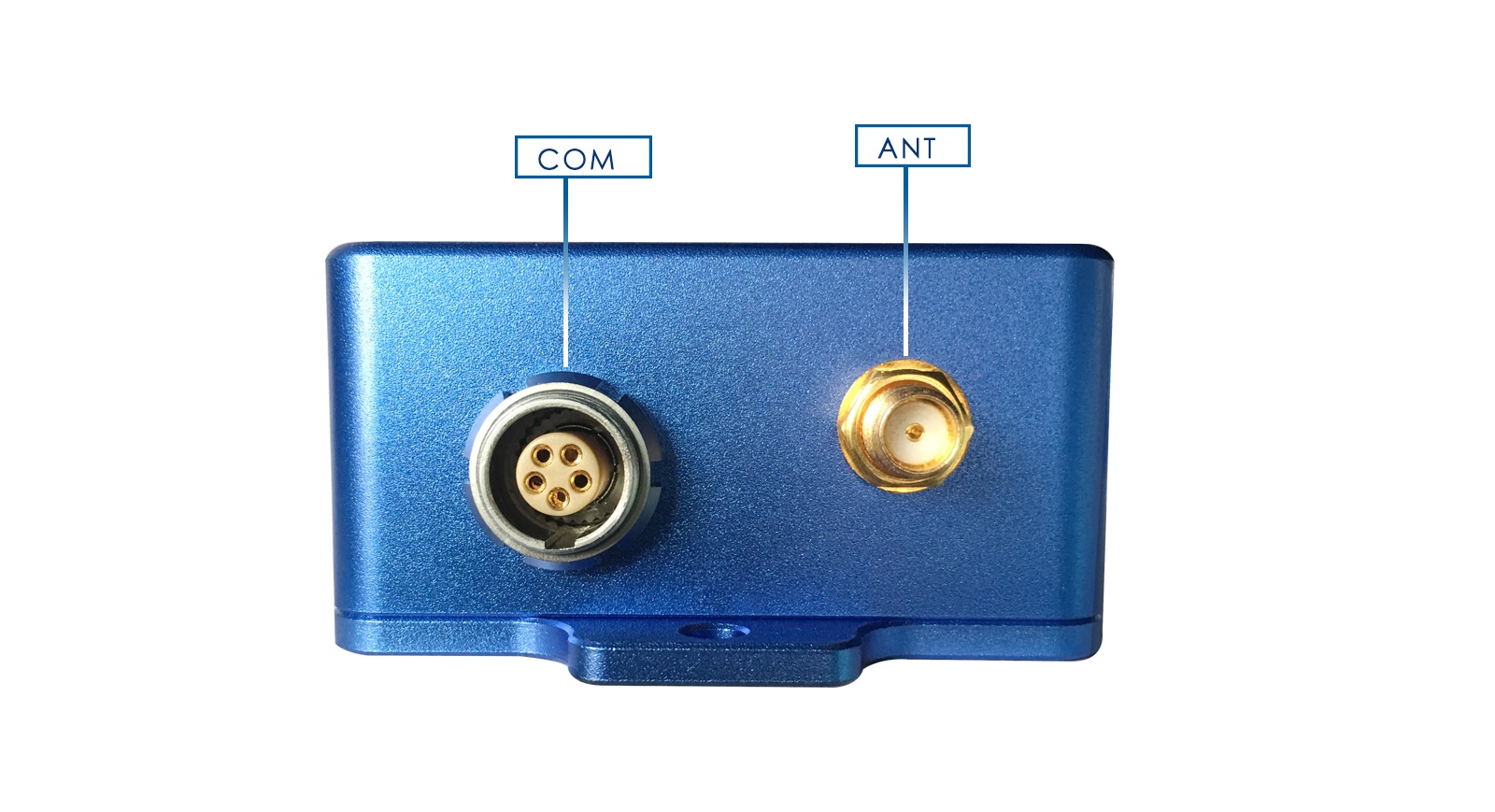

Interface

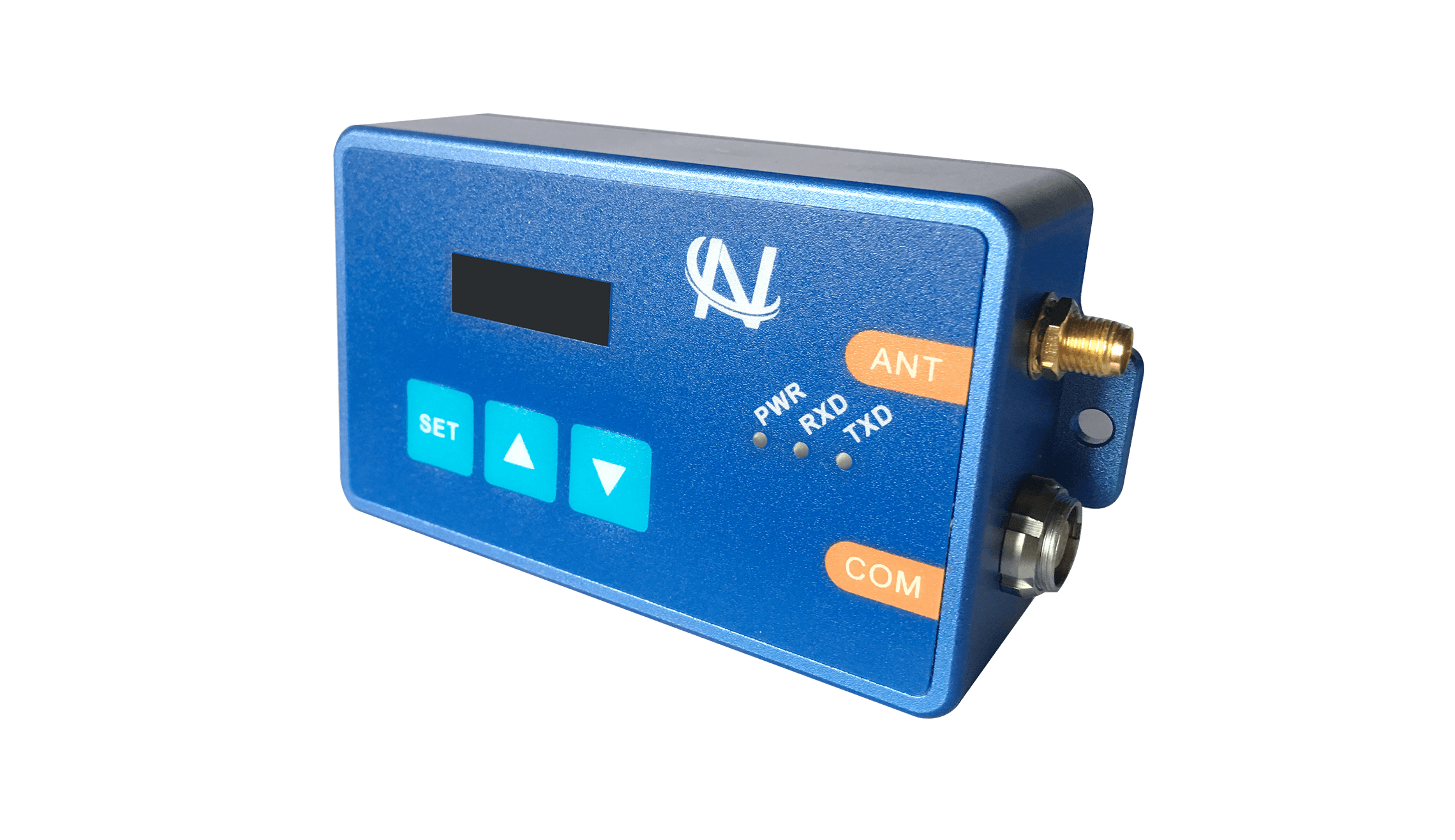

Radio wireless module is used to match our company's products. Each wireless module is equipped with a high-sensitivity magnetic antenna. It can transparently send and receive data through RS232 or CAN interface. It can be connected to our company’s data acquisition host, base station and other equipment, and can also be connected to multiple data acquisition hosts for data interaction, which can be used for ADAS testing. Outside the vehicle noise test, tire pressure monitoring and other occasions.

	NE-RA2G4	NE-RA433	NE-RA815
Baseband frequency (Hz)	2.4G	433M	815M
Communication distance	4000 meters (open and wide ground, antenna height 2 meters, baud rate 9600)
Communication Interface	1 channel RS232, the baud rate is 115200 by default (57600, 38400, 19200, 9600, 4800, 2400 can be selected) 1 channel CAN, communication rate 125K, 250K, 500K, 1M can be set
communication method	Half-duplex (2.4G supports point-to-point full-duplex)
Antenna interface	SMA
Display method	0.91 inch OLED
Status indication	3 LEDs (power supply, data transmission, data reception)
parameter settings	Parameters such as address channel and air rate can be set
Supply voltage	12VDC (7-30V wide power supply)
Power consumption	About 2W
Operating temperature	-20~+60℃
Working humidity	10~90%RH (no condensation)
Storage temperature	-30~+70℃
Dimensions (LWH)	110mmx58mmx30mm
Installation size	2 M4, 102mm center distance
Weight	About 180g
