Pass-by noise test system

Description
Technical index
Configuration

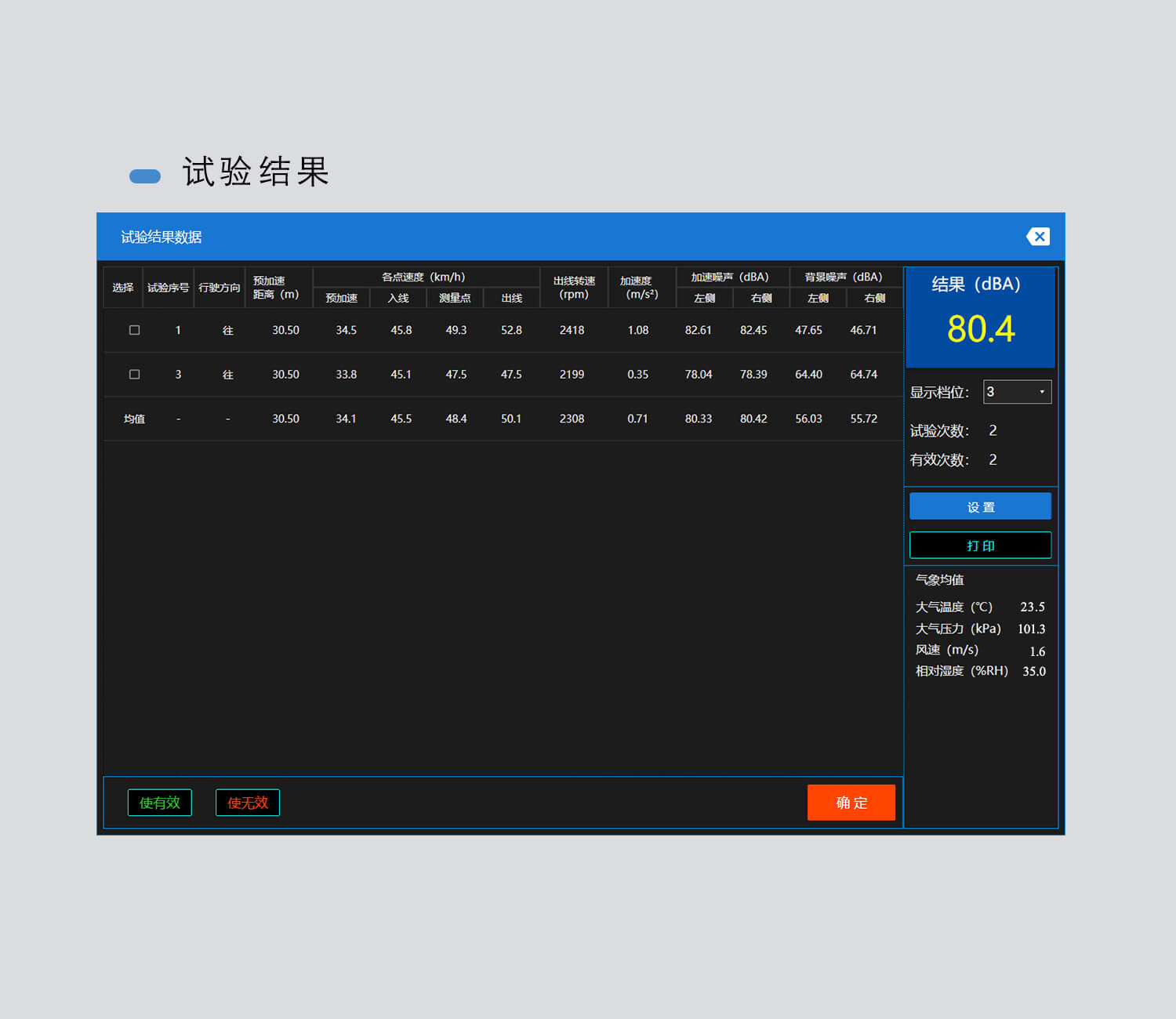

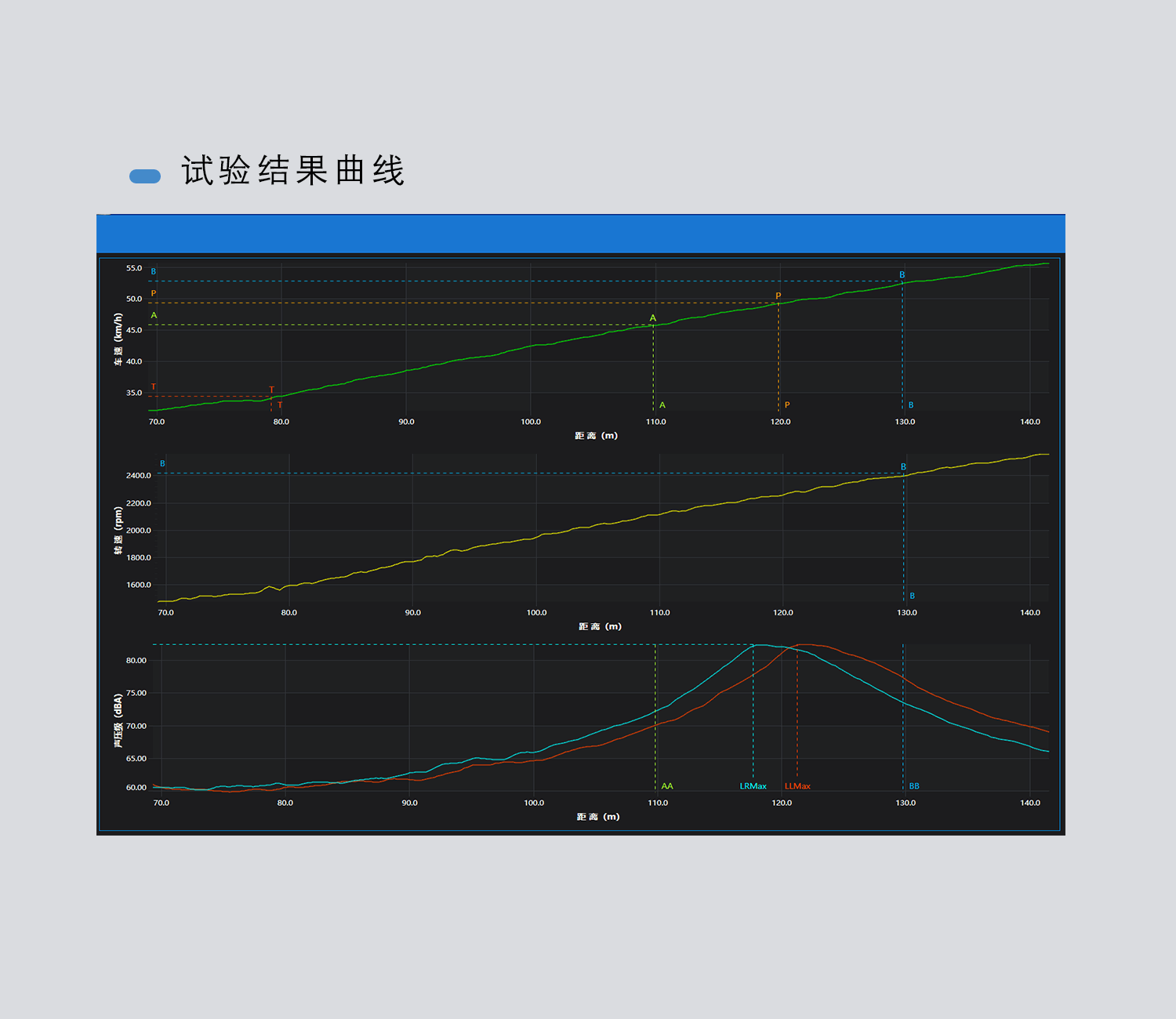

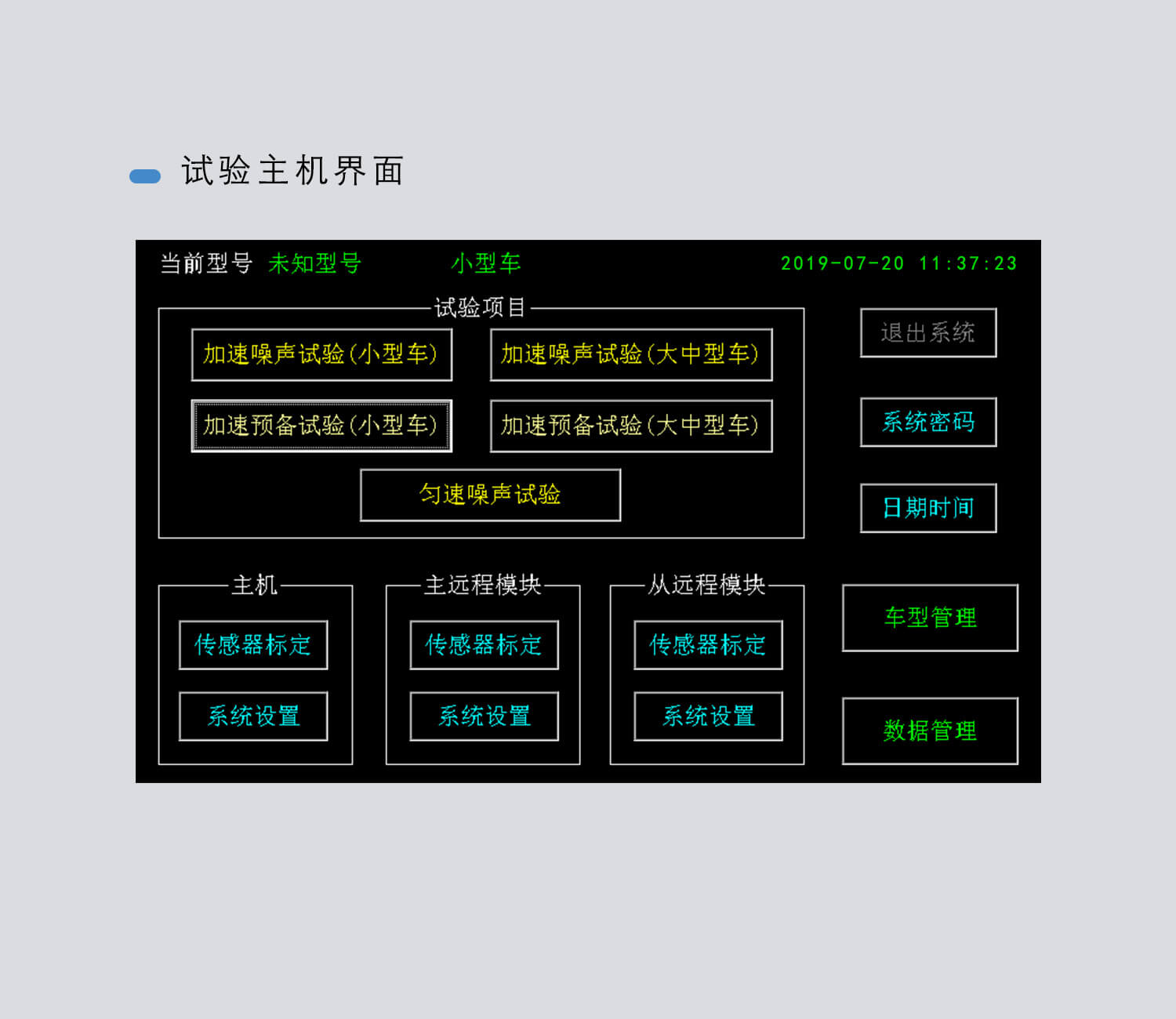

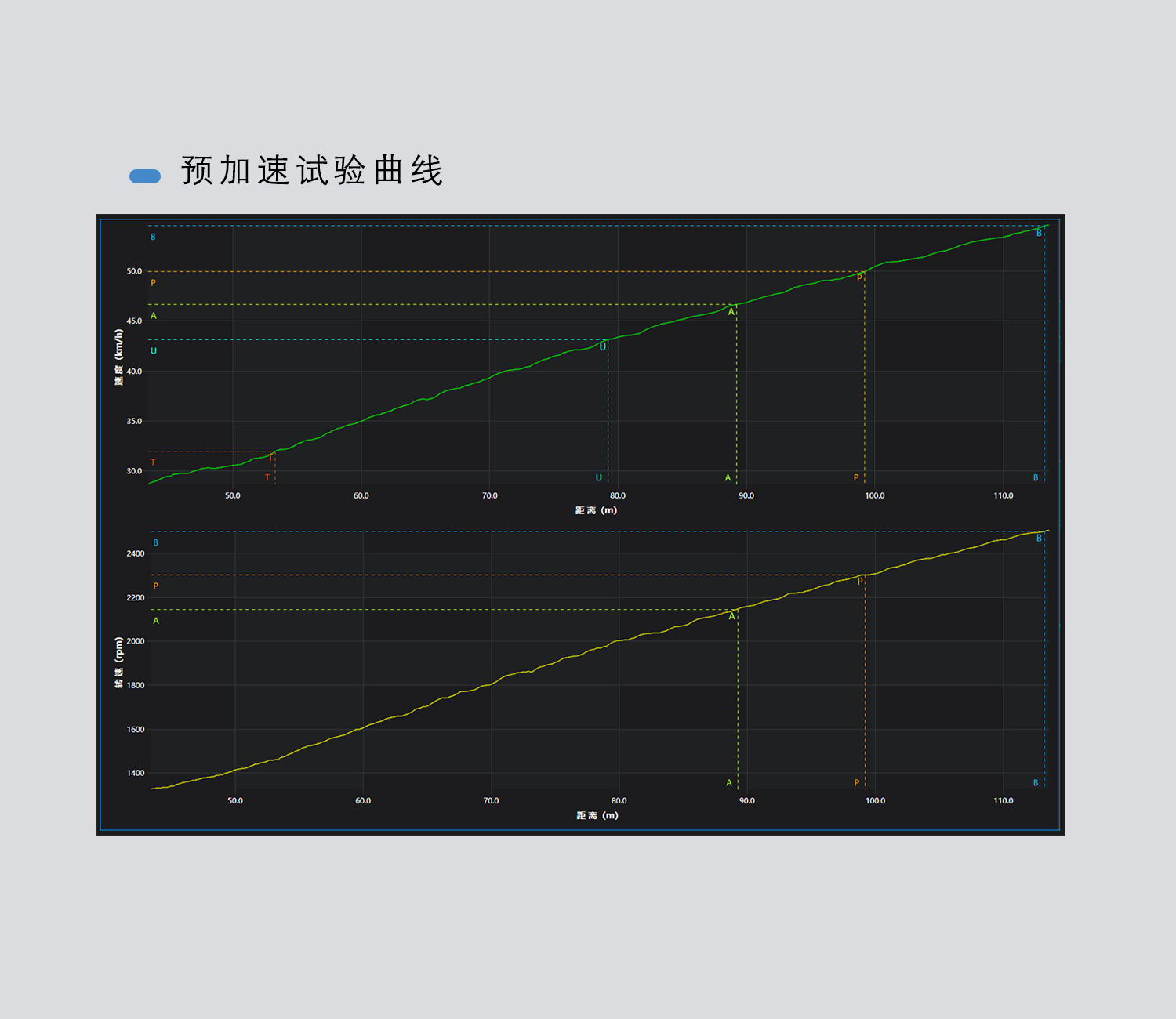

Software

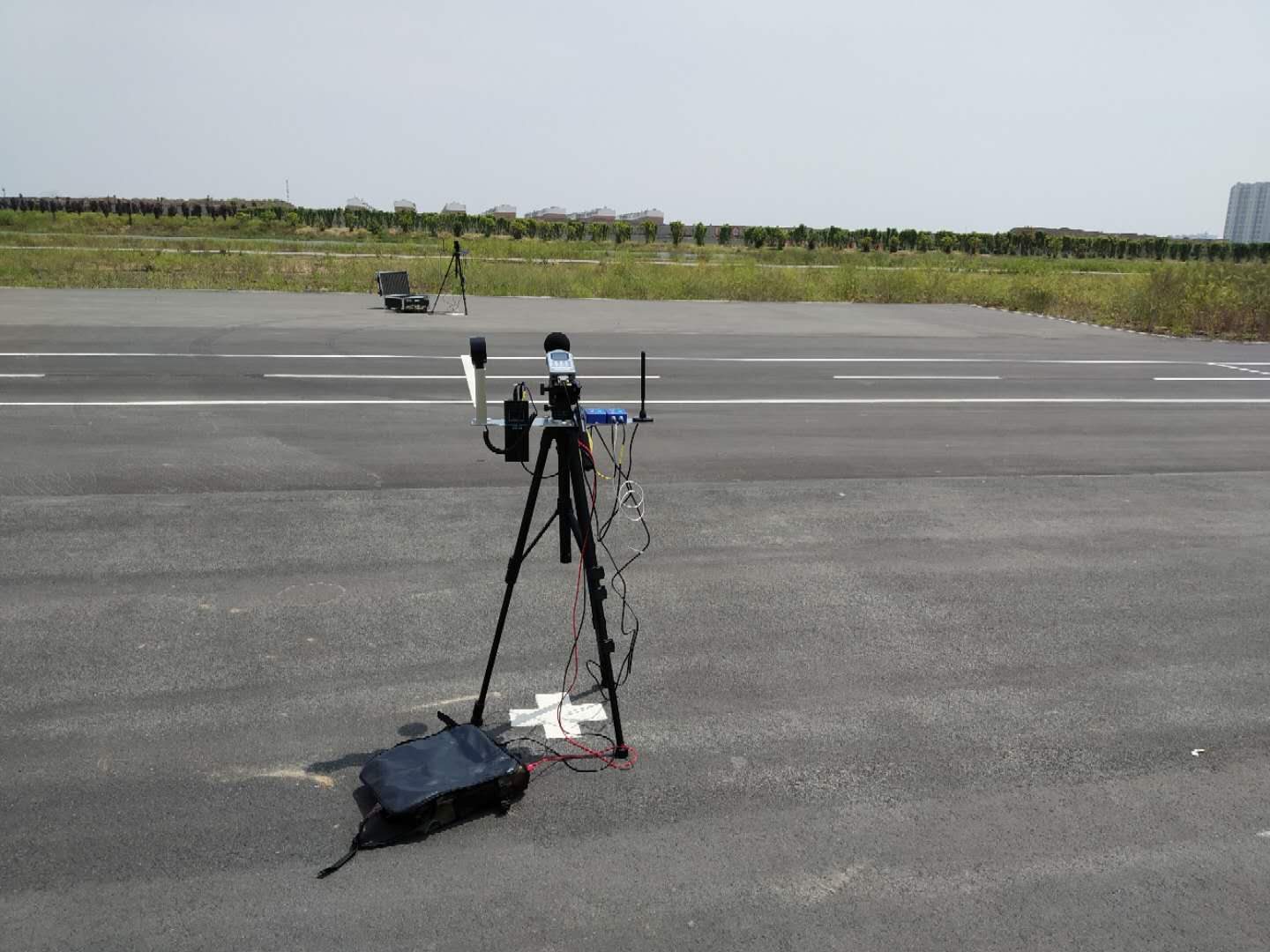

Application

The passing noise test system is used to measure the noise outside the vehicle during acceleration. It can meet ECE R51, GB1495-2018 and GB1495-2002 at the same time. The equipment function, range and accuracy can be applied to all models, and the operation is convenient and efficient.

●Test items

Accelerated test: GB1495-2018, GB1495-2002, ECE R51-2015

Uniform speed test: GB1495-2018, GB1495-2002, ECE R51-2015

●Measurement parameters

Vehicle speed, time, distance, acceleration, engine speed, sound level, meteorological parameters (temperature, wind speed).

●Main Features

Support calibration: support sensor calibration, test data management

The parameters can be set: the vehicle length, reference point, trigger distance of the access line, etc. can be set by the noise test system outside the vehicle

Print report: The test system can print the test results on site and generate test reports.

Flexible configuration: Flexible configuration of test plan, you can choose unilateral round-trip test and bilateral round-trip test mode

Easy to operate: the hardware is automatically triggered at the beginning and end of the test, with small delay, voice prompts, and convenient operation

Applicable models: Meet ECE R51 Appendix 10 Method B and GB 1495-2002 Method A to measure the noise outside the vehicle during acceleration, applicable to all models

Laser trigger: laser trigger sensor trigger, stable and reliable; RTK base station can also be configured, automatic position trigger, no laser trigger sensor is required

Real-time measurement: real-time measurement and calculation of sound pressure level, vehicle speed, engine speed, acceleration time, acceleration distance, average acceleration of the test area and other signals

Support optional: optional environmental temperature, surface temperature sensor and wind speed sensor, etc., real-time weather data measurement

Data download

Speed	100Hz GPS, speed measurement range 0-720km/h, speed measurement accuracy: ±0.1km/h, resolution 0.01 km/h
Time	Range: unlimited, accuracy: 1ms
Engine speed	Range 0～30KHz, measurement accuracy: ±5Hz
Built-in printer	Test results can be printed online in real time or afterwards
Wireless data transmission	Transmission distance 800m
Sound level meter	Range: 22～140dB, accuracy: level 1 Measuring frequency: 10Hz～20KHz, sampling frequency: 48KHz, 24-bit AD Support A, C, Z frequency weighting, Fast, Slow, Impulse time weighting
Calibrator	Accuracy level 1, 94dB/114dB, 1kHz
Data update rate	20～1000Hz, can be set by the host
Temperature measurement	Range: -50℃～150℃, accuracy: ±0.5℃
Wind speed measurement	Range: 0.4～35m/s, resolution: 0.2m/s, accuracy: ±2%
Ground measurement equipment power supply	12V lithium battery pack power supply, continuous use time ≥60h after fully charged
Power supply for vehicle equipment	12VDC (9~36V wide voltage)
12.3 inch touch screen	WIN10 operating system, memory 4GB, solid state hard drive 128GB

External noise test system configuration

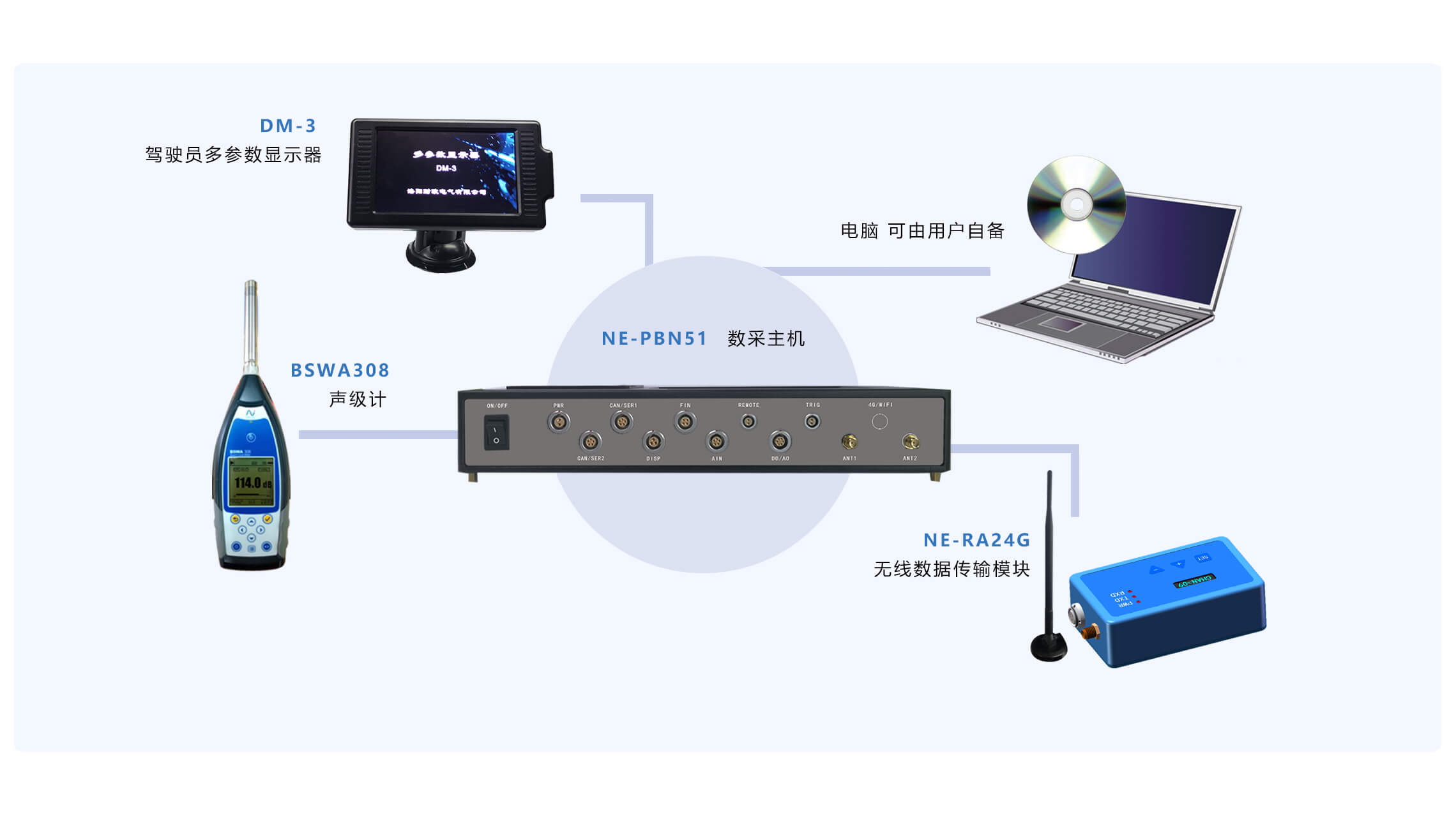

●System host: NE-PBN51

●Data processing display: 12.3 inches

●Engine speed sensor: user choice

●Laser trigger sensor: NE-D50NK, 1

●Handheld Communicator: HS-1

●Wireless data transmission module: NE-RA24G

●Sound level meter (level 1): user choice

●Acoustic calibrator (level 1): user choice

●Sound level data acquisition module: NE-AD4

●Tripod: hydraulic buffer

●Temperature sensor: PT100

●Wind speed sensor: AZ-8901

●Laser reflector: TD-120

●Lithium battery pack: 12V
