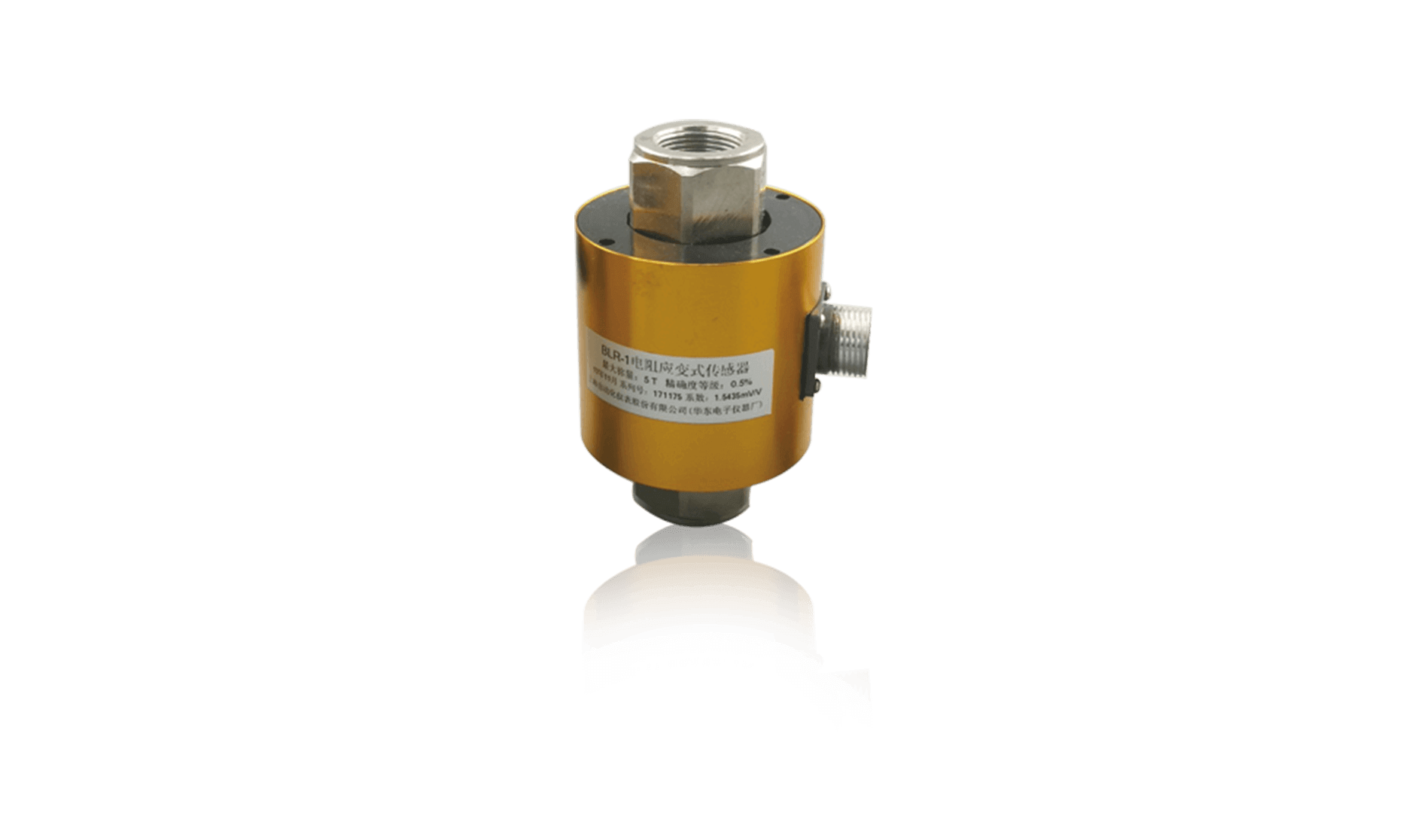

Traction sensor

Description
Technical index

The traction capacity reflects the dynamic performance of the vehicle towing the trailer. The traction performance test includes the traction performance test and the maximum decoupling traction performance test. In order to quantify the traction capability of the vehicle, NE integrates a high-precision and durable resistance strain-type tension sensor. The sensor is small in size, compact in structure, and strong in overload resistance. The signal transmission line uses a high-quality cable with a shielding layer with good flexibility and bending resistance to shield electromagnetic interference.

Data download

	BLR-1/10t
Range	10t
Sensitivity	1.5mV/V
Non-linear	±0.5% FS
Lag after	±0.5% FS
Repeatability	±0.5% FS
Excitation voltage	Recommended 10VDC, maximum 15VDC
Bridge impedance	350Ω
Operating temperature	-10～50℃
Zero temperature coefficient	0.4% FS /10℃
Safety overload	120%
Lead wire length	5m, can be customized
Connection thread size	M36x3
Dimensions φLW	φ90x160x110mm
