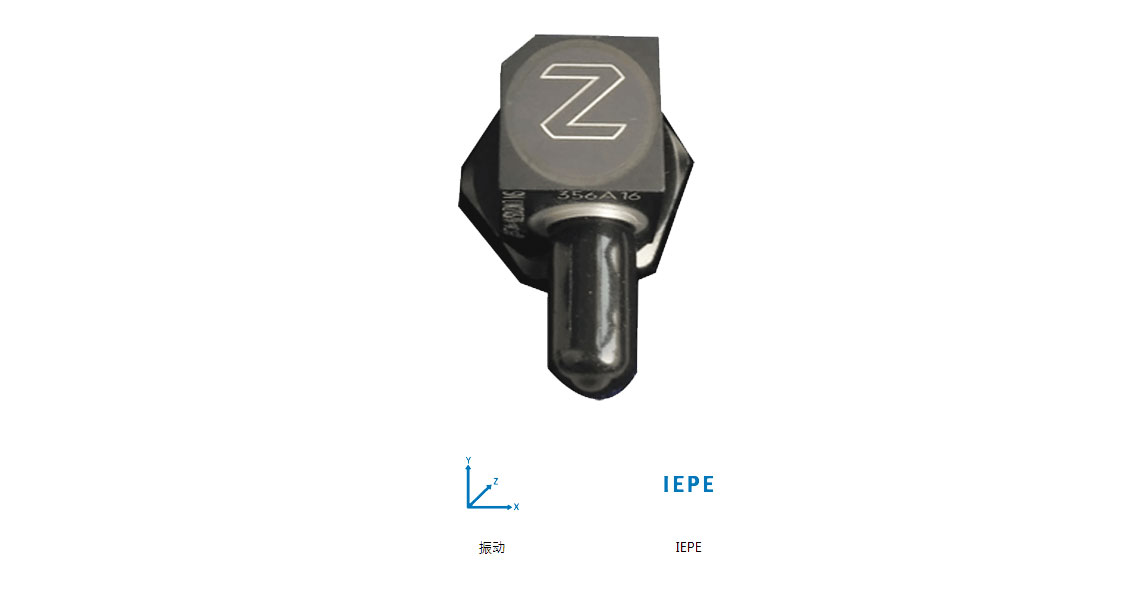

Three-axis vibration acceleration sensor

Three-axis vibration acceleration sensor
  • Description
  • Technical index

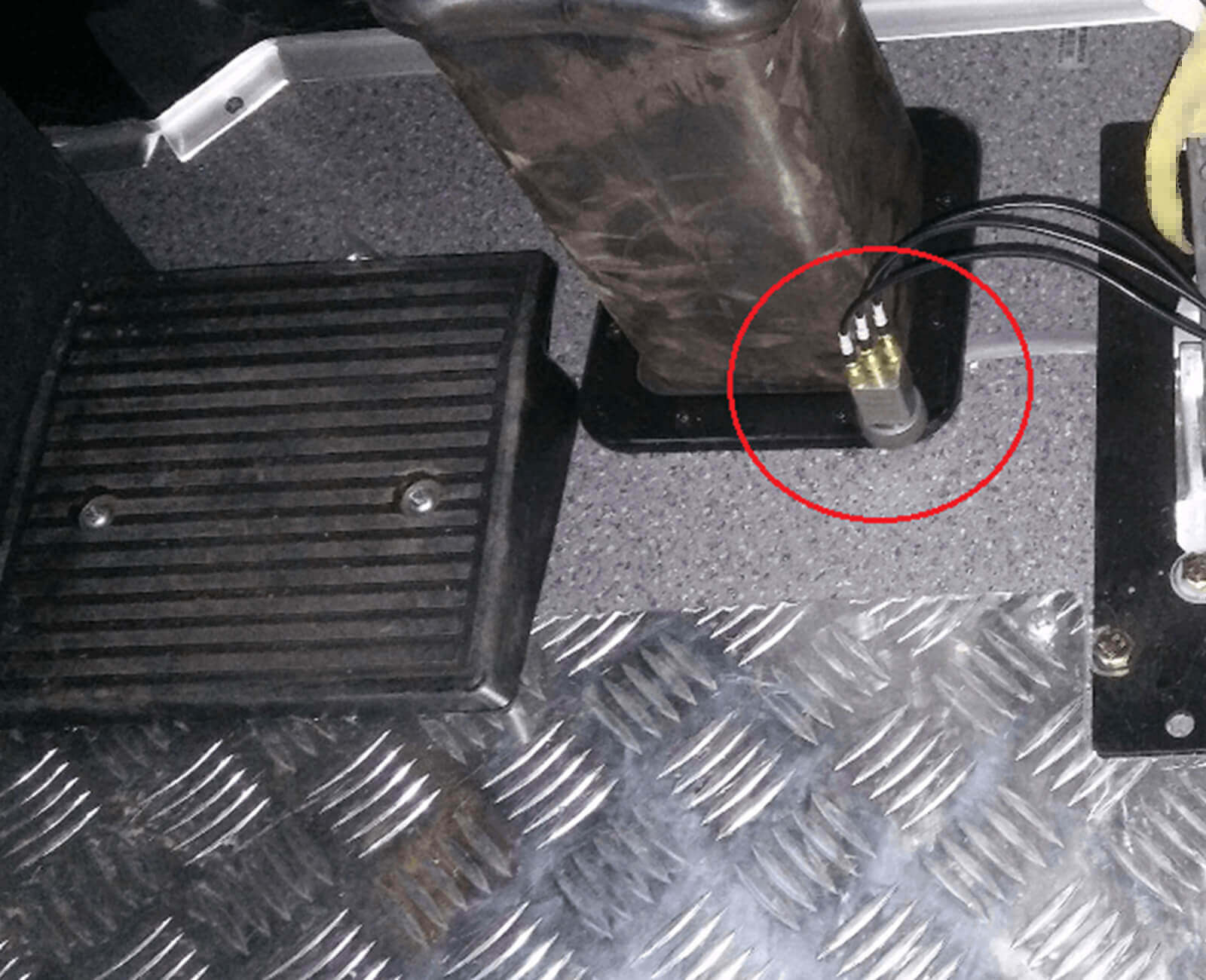

When a car is driving, uneven road surfaces and rotating parts such as the engine, drive train, and wheels will excite the car's vibration. In order to evaluate the comfort of the occupants, it also includes keeping the cargo intact for a truck. NE specifically integrates several IEPE three-axis vibration acceleration sensors. The product has the characteristics of high accuracy, low impedance, high signal-to-noise ratio, and low cost of supporting equipment. It is an ideal vibration measurement product in the field of vehicle testing.

Main feature:

●Easy to install and easy to use

●Can be directly connected to a data collector with a built-in constant current source

●Low noise, high level, low impedance output, strong anti-interference ability, can transmit signals through long cables without causing noise increase

356A16 SD14N20
Origin American PCB Hebei china
Range ±50g pk ±50g pk
Sensitivity 100 mV/g 100 mV/g
Frequency Range 0.3~6,000 Hz 0.5~10,000 Hz
Resonant frequency ≥25 kHz ≥30 kHz
In-band resolution (1 to 10,000 Hz) 0.0001g rms 0.0001g rms
Non-linear ≤1% ≤1%
Overload limit (impact) ±7000g pk ±7000g pk
Operating temperature -54~+80 ℃ -20~+60 ℃
Excitation voltage 20~30 VDC 12~30 VDC
Excitation current 2~20 mA 2~20 mA
Output impedance ≤200 Ω ≤200 Ω
Output bias 8~12 VDC 8~12 VDC
Signal line length 3m, can be customized 3m, can be customized
Installation method M5 magnetic base M5 magnetic base
Dimensions LWH 20.3×14.0×14.0mm Hexagonal 14×20mm
Weight About 7.4gm About 15gm
